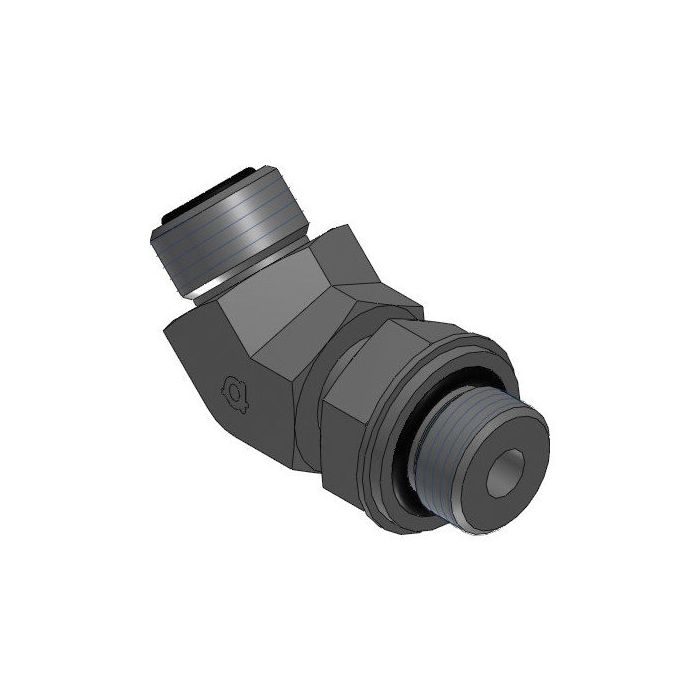

main product photo

45* Male Orfs X Mbspp Adj. Elb

Ask A Question

Description & Features

This 45° steel elbow fitting, expertly crafted by Adaptall, is designed for high-performance hydraulic applications. Featuring a Male ORFS connection on Side 1 with a 11/16 - 16 UN thread and a Male BSPP connection on Side 2 with a G 1/4 - 19 thread, this fitting ensures secure and efficient fluid transfer. Its dimensions include a CH1 and CH2 width of 18.5mm, L1 length of 21mm, and L2 length of 32mm, providing a compact yet robust solution for your hydraulic systems.

The 45° Male ORFS x M BSPP Adj. Elbow is constructed from durable steel, ensuring long-lasting performance even in demanding environments. Its compact design and reliable connections make it ideal for use in a variety of industrial settings, where precision and dependability are paramount. This fitting supports seamless integration into your existing hydraulic setup, enhancing overall system efficiency.

SKU: 6058-06-04

Supplier Part Number (MPN): 6058-06-04

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
6058 Series
Thread Size
11/16-16 x 1/4-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Bonnie W on Sep 6, 2025, 6:32 AM
What size threads does this elbow use?
Answer by: Customer Support on Sep 7, 2025, 12:12 PM
It uses a 11/16 - 16 UN thread on one side and a G 1/4 - 19 thread on the other.
Question by: Dean B on Apr 3, 2026, 4:38 PM
thread sizes on both ends of this thing, can you confirm what we're working with before I go pulling lines apart?
Answer by: Customer Support on Apr 4, 2026, 5:02 PM
Side one runs an 11/16 - 16 UN thread, which is your Male ORFS connection at 3/8 inch size. Side two is a G 1/4 - 19 thread, which is the Male BSPP end at 1/4 inch. Both ends are male, so plan your mating fittings accordingly before you start swapping anything out.
