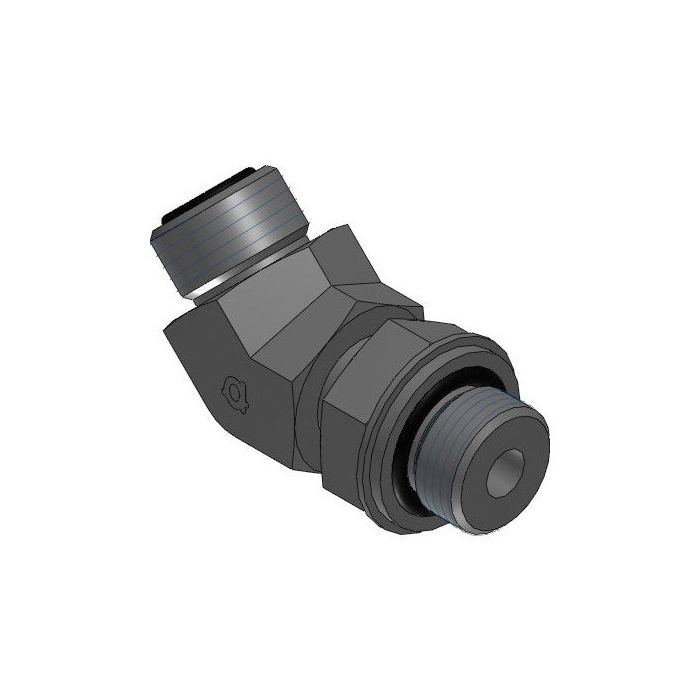

main product photo

45* Male Orfs X Mbspp Adj. Elb

Ask A Question

Description & Features

This steel 45* Male Orfs X Mbspp Adj. Elb features a 3/8" Side 1 Orfs male connection with an 11/16 - 16 UN callout. Side 1 has a width of 19mm and a length of 20mm.

The Side 2 connection is a 3/8" BSPP male with a G 3/8 - 19 callout. Side 2 has a width of 22mm and a length of 31mm. This Adaptall 45° elbow is suitable for various hydraulic applications.

SKU: 6058-06-06

Supplier Part Number (MPN): 6058-06-06

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
Hex Size
19 x 22 mm
Material
Steel
Material Construction
Carbon Steel
Series
6058 Series
Thread Size
11/16-16 x 3/8-19

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Carl H on Sep 6, 2025, 11:28 AM
both sides on this fitting are 3/8, does that mean the thread pitch and style are the same too, or are they actually different standards?
Answer by: Customer Support on Sep 8, 2025, 8:33 AM
Different standards entirely. One side is ORFS, which uses a 11/16-16 UN thread and seals against a flat face with an O-ring. The other is BSPP, running a G 3/8-19 thread that seals differently. Same nominal size, but you can't mix them up, the thread forms and sealing methods don't match between the two.
Question by: Dwayne A on Aug 17, 2025, 2:44 PM
trying to swap a fitting on a hose, is this elbow the one that goes from 3/8 ORFS male to 3/8 BSPP male?
Answer by: Customer Support on Aug 18, 2025, 6:11 PM
For that setup, it matches a 3/8 inch ORFS male on Side 1 with an 11/16-16 UN thread callout, and a 3/8 inch BSPP male on Side 2 with a G 3/8-19 callout. It is a 45 degree adjustable elbow made of steel.
