45* Male Orfs X Mbspp Adj. Elb

Description & Features

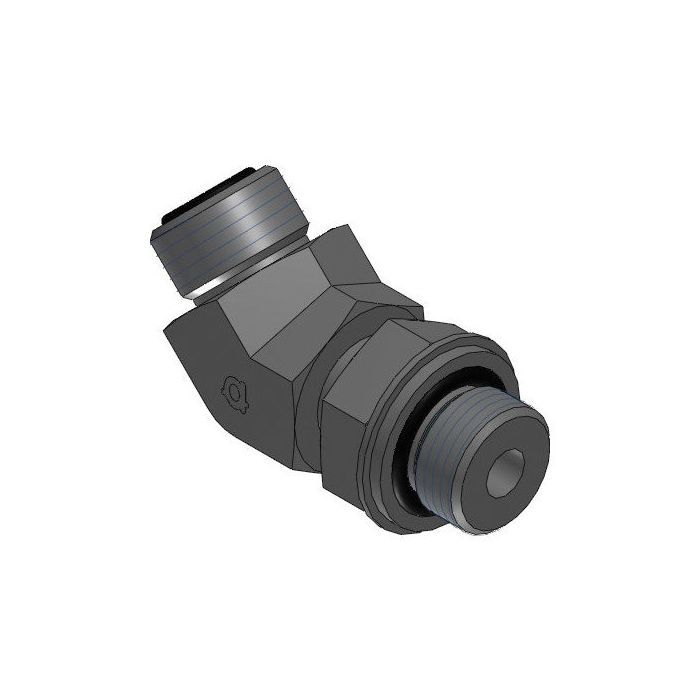

This steel 45* Male Orfs X Mbspp Adj. Elb features a 5/8" male ORFS side 1 with 1-14 UNS threads and a 1/2" male BSPP side 2 with G 1/2 - 14 threads. It has a 45° elbow shape for adapting connections in hydraulic systems.

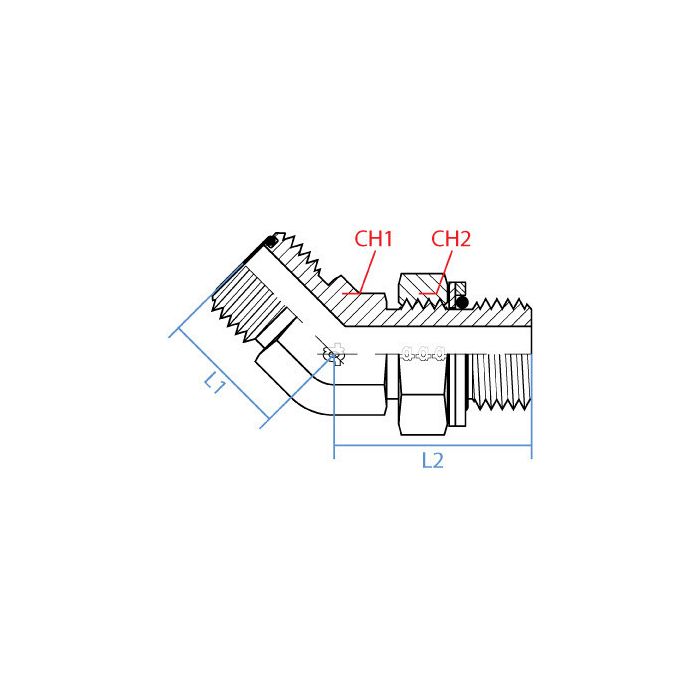

The Adaptall Ch1 and Ch2 widths are both 26.5mm, with Adaptall L1 and L2 lengths of 25mm and 40mm respectively.

SKU: 6058-10-08

Supplier Part Number (MPN): 6058-10-08

Specifications

Brand adapt-all	Connection Size 1 5/8 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Adjustable BSPP	Dimension Standards BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453	Finish Zinc-Plated	Fitting Type 45 deg Elbow	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 6058 Series	Thread Size 1-14 x 1/2-14

Product Questions & Answers (2)

Question by: Kent H on Sep 17, 2025, 8:28 PM

got a hose end that’s 5/8 ORFS male, will this elbow screw right onto it or am i mixing up thread types

Answer by: Customer Support on Sep 19, 2025, 3:08 PM

Fit comes down to the thread callouts on each side. Side 1 on this elbow is a 5/8 inch male ORFS with 1-14 UNS threads, so it matches up with a 5/8 ORFS female port or swivel that uses 1-14 UNS.

Question by: Clint W on Jun 10, 2025, 11:32 AM

What's the deal with the "adjustable" part of the name? Does that mean I can tighten it to different angles or something?

Answer by: Customer Support on Jun 11, 2025, 8:59 PM

The "adjustable" in the name refers to the fitting having both ORFS and BSPP ends, which are different standards. This allows you to adapt between the two in your hydraulic system.
