90*Male Orfs X Mbspp Adj Elbow

Ask A Question

Description & Features

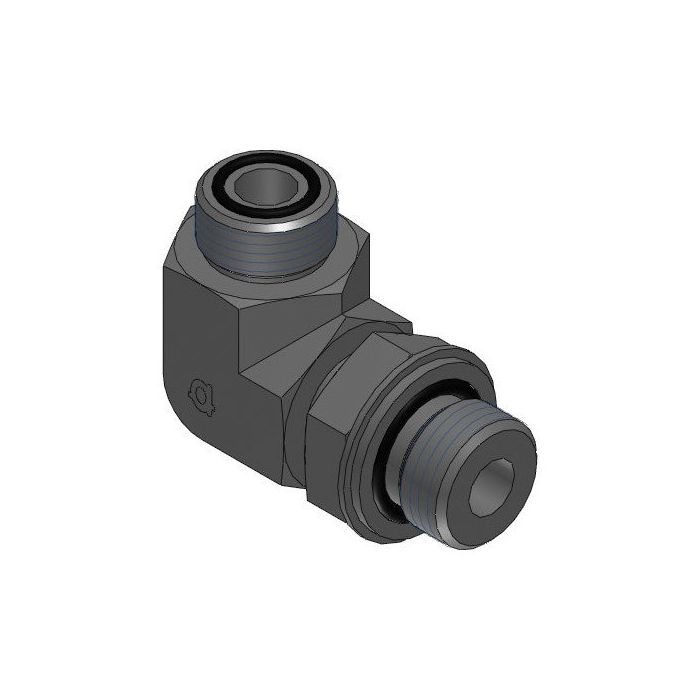

This steel 90° elbow features a 3/8" male ORFS (O-Ring Face Seal) end and a 1/4" male BSPP (British Standard Parallel Pipe) adjustable end. The Adaptall 90*Male Orfs X Mbspp Adj Elbow provides a reliable connection in hydraulic applications.

The ORFS side has a callout size of 11/16 - 16 UN, while the BSPP side has a callout size of G 1/4 - 19. Both ends feature a 19mm wrench flat for easy installation. The L1 length is 27mm, and the L2 length is 38mm.

SKU: 6059-06-04

Supplier Part Number (MPN): 6059-06-04

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
1/4 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
19 mm
Material
Steel
Material Construction
Carbon Steel
Series
6059 Series
Thread Size
11/16-16 x 1/4-19

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Sherry M on Oct 13, 2025, 12:26 PM
trying to swap an elbow out, is this one 3/8 ORFS on one end and 1/4 BSPP on the other?
Answer by: Customer Support on Oct 15, 2025, 6:17 AM
On the ORFS side you get a 3/8 inch male O-Ring Face Seal with an 11/16 - 16 UN callout, and the other end is a 1/4 inch male BSPP adjustable with a G 1/4 - 19 callout.
