90*Male Orfs X Mbspp Adj Elbow

Description & Features

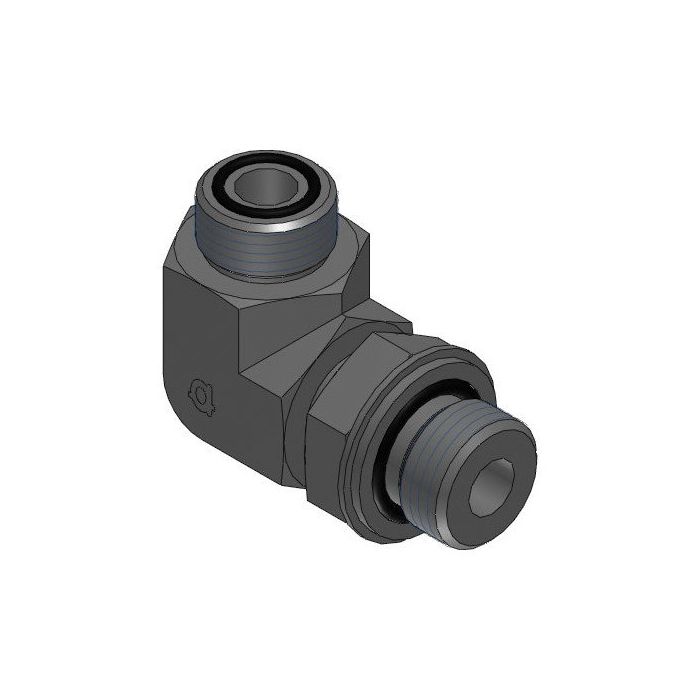

Constructed from steel, this 90° adjustable elbow adapter connects a 3/8" Male ORFS port (11/16-16 UN thread) to a 1/2" Male BSPP port (G 1/2-14 thread), making it well suited for hydraulic circuits where these two thread standards need to meet at a right angle. The adjustable design allows the elbow orientation to be set during installation, providing flexibility when routing hose or tube assemblies in tight or congested spaces.

The 90° Male Orfs X Mbspp Adj Elbow is an Adaptall product, with wrench flats on both sides measuring 27mm across. The L1 dimension is 31mm and L2 is 50mm, giving a compact overall envelope suited to confined mounting areas. ORFS (O-Ring Face Seal) on one end provides a leak-resistant metal-to-metal seal backed by the O-ring, while the BSPP end is compatible with the British Standard Parallel Pipe thread commonly found in European and international hydraulic equipment.

SKU: 6059-06-08

Supplier Part Number (MPN): 6059-06-08

Specifications

Brand adapt-all	Connection Size 1 3/8 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Adjustable BSPP	Dimension Standards BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 6059 Series	Thread Size 11/16-16 x 1/2-14

Product Questions & Answers (2)

Question by: Dustin B on Jun 16, 2025, 9:53 PM

If I'm hooking up some foreign-made equipment, will this elbow work with the BSPP threads?

Answer by: Customer Support on Jun 18, 2025, 6:46 AM

This elbow is designed to adapt between ORFS (O-Ring Face Seal) and BSPP (British Standard Parallel Pipe) threads, so it should work for connecting equipment using those standards. Just double-check your thread sizes to make sure the 1/2" BSPP end fits your equipment.

Question by: Hubert H on Oct 25, 2025, 6:00 PM

trying to marry up a 3/8 ORFS line to a G 1/2 BSPP port. is this the right elbow for that?

Answer by: Customer Support on Oct 27, 2025, 12:27 PM

For that combo, it matches up: one end is a 3/8 inch Male ORFS with 11/16-16 UN threads, and the other end is a 1/2 inch Male BSPP with G 1/2-14 threads. It is a 90 degree adjustable elbow, so you can clock the direction during install.
