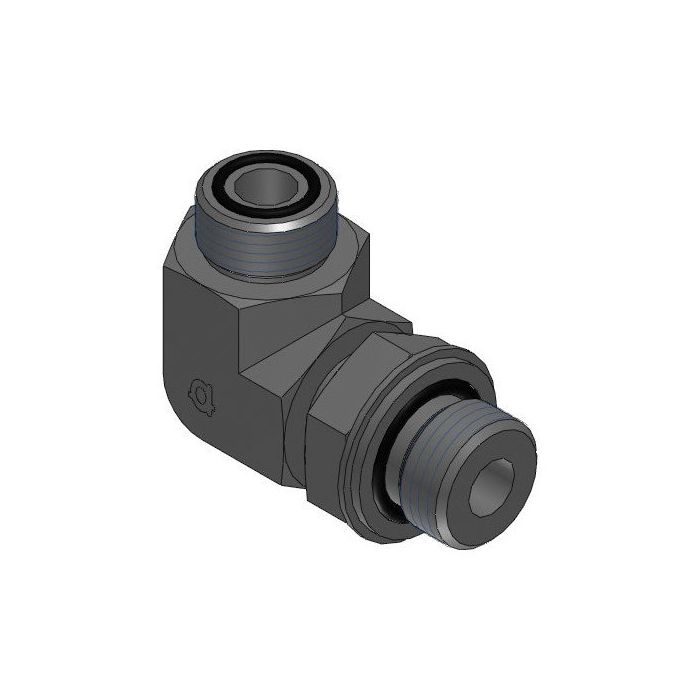

90*Male Orfs X Mbspp Adj Elbow

Description & Features

Designed for precision hydraulic applications, this 90° elbow fitting combines a Male ORFS connection with an M BSPP adjustable elbow. Fabricated from durable steel, it delivers robust performance in demanding environments. The elbow features a 13/16 - 16 UN thread on the ORFS side and a G 3/8 - 19 thread on the BSPP side, ensuring reliable connectivity in various hydraulic systems.

With dimensions including a 19mm CH1 width and a 22mm CH2 width, the compact design is optimal for tight spaces without sacrificing strength. The 90°Male Orfs X Mbspp Adj Elbow is an essential component for industrial systems requiring secure and leak-free connections. Its adaptability and sturdy construction make it ideal for high-pressure scenarios where precision and reliability are paramount.

SKU: 6059-08-06

Supplier Part Number (MPN): 6059-08-06

Specifications

CH1 Width 19mm	CH2 Width 22mm	L1 Length 30mm	L2 Length 38mm	Adaptall Material Steel	Adaptall Shape 90° Elbow	Side 1 Callout 13/16 - 16 UN	Side 1 Gender M	Side 1 Size 1/2"	Side 1 Type Orfs	Side 2 Callout G 3/8 - 19	Side 2 Gender M	Side 2 Size 3/8"	Side 2 Type Bspp	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6059-08-06	Product Weight 0.30 lbs

Product Questions & Answers (1)

Question by: Danny C on Apr 21, 2025, 9:28 AM

Will this fitting hold up to high pressure in a hydraulic system?

Answer by: Customer Support on Apr 23, 2025, 6:08 AM

Designed for demanding environments, this elbow fitting is constructed from durable steel, making it suitable for high-pressure hydraulic applications where secure, leak-free connections are essential.
