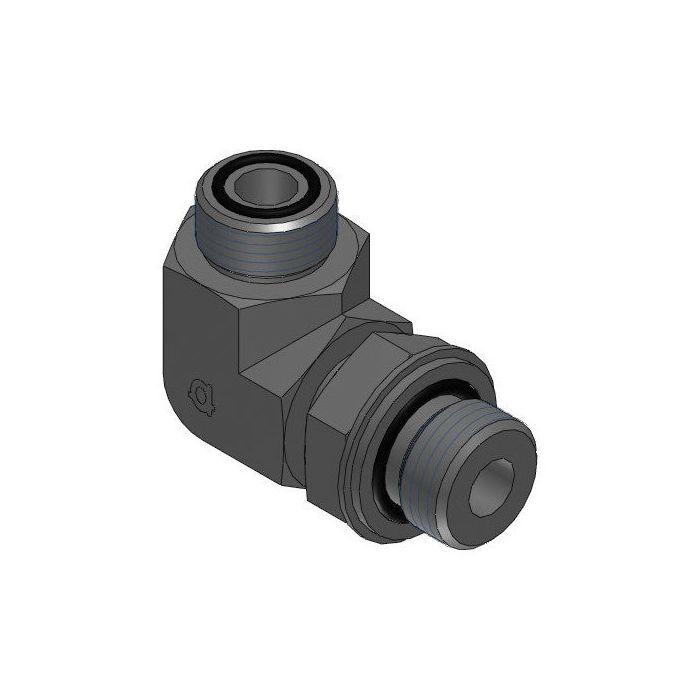

90*Male Orfs X Mbspp Adj Elbow

Ask A Question

Description & Features

Designed for robust hydraulic systems, this steel 90° elbow fitting connects 1/2" male ORFS to 1/2" male BSPP threads seamlessly, ensuring efficient fluid transfer. With a uniform width of 27mm on both connection sides, this elbow fitting offers a secure and durable assembly, making it ideal for high-pressure industrial environments. The 90° angle facilitates directional changes in hydraulic circuits while maintaining optimal flow characteristics.

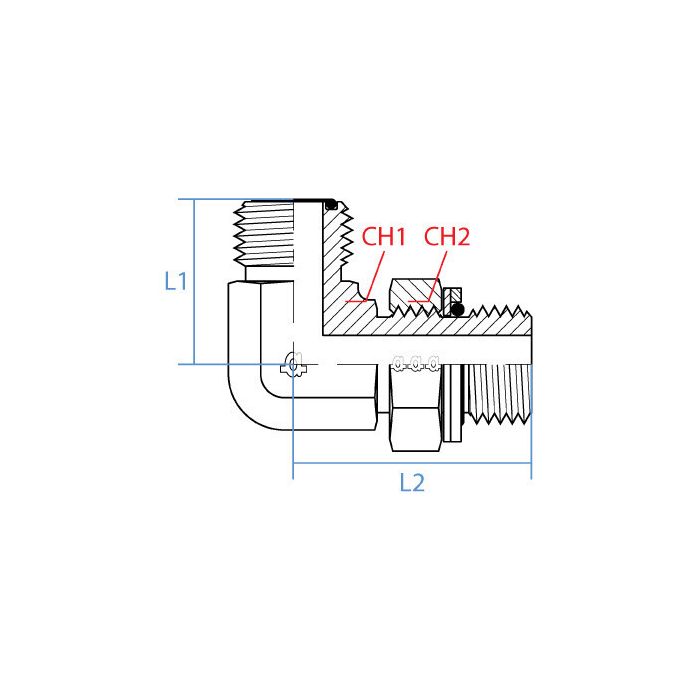

Manufactured by Adaptall, the fitting features a material construction of high-quality steel, providing excellent corrosion resistance and longevity in demanding applications. The precise dimensions of 33mm L1 length and 50mm L2 length make it compatible with various hydraulic configurations, enhancing system versatility and performance.

SKU: 6059-08-08

Supplier Part Number (MPN): 6059-08-08

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
6059 Series
Thread Size
13/16-16 x 13/16-16 x 1/2-14

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Brett G on Apr 8, 2025, 7:31 PM
got a hose end that’s 13/16-16 UN ORFS male, will this elbow screw right onto it?
Answer by: Customer Support on Apr 10, 2025, 6:55 AM
On the ORFS side, it has a 1/2 inch male ORFS thread with a 13/16-16 UN callout, so it matches up to a female ORFS port or hose end with that same size and thread.
Question by: Travis S on Nov 3, 2025, 8:21 AM
Will this fitting hold up in a high-pressure hydraulic setup, or should I be looking at something beefier?
Answer by: Customer Support on Nov 4, 2025, 4:30 PM
Designed for robust hydraulic systems, this fitting is made of high-quality steel to withstand demanding, high-pressure industrial environments.
