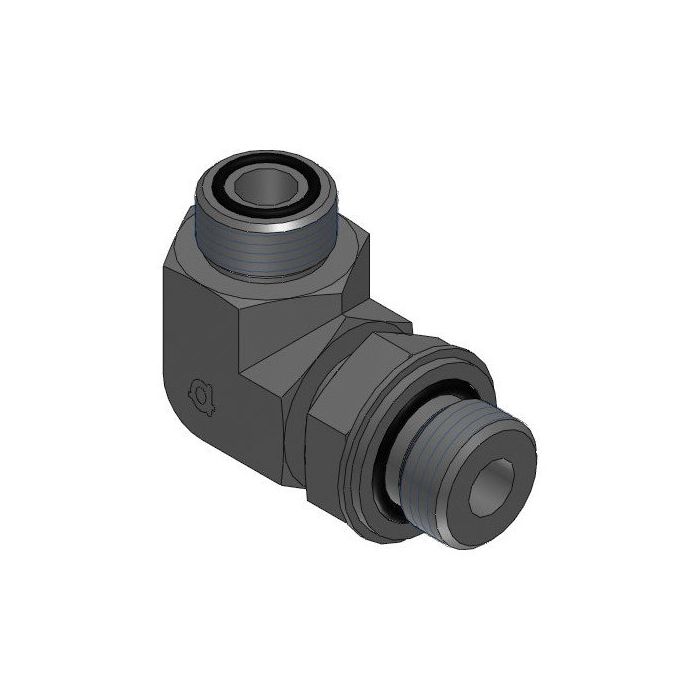

90*Male Orfs X Mbspp Adj Elbow

Ask A Question

Description & Features

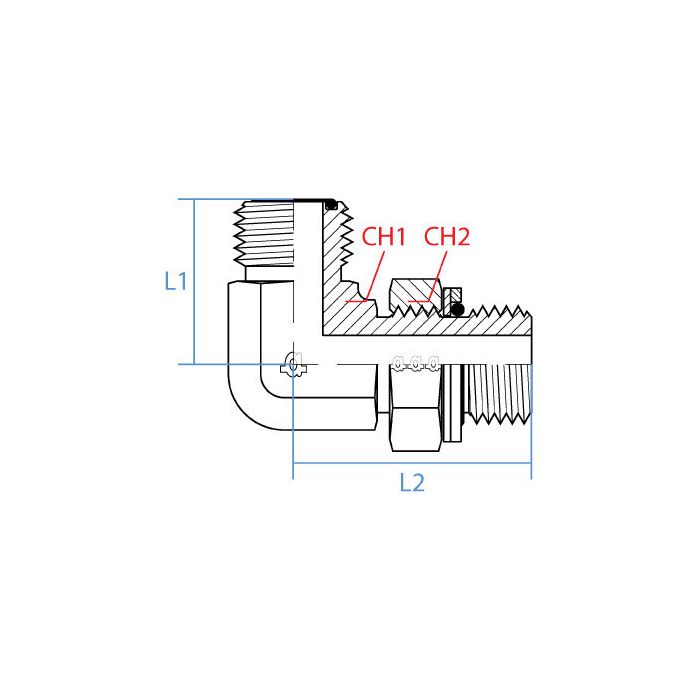

This steel 90° elbow Adaptall fitting features a 5/8" male ORFS Side 1 with a 1-14 UNS callout and a 1/2" male BSPP Side 2 with a G 1/2 - 14 callout. With Adaptall Ch1 and Ch2 widths both measuring 26.5mm, and Adaptall L1 and L2 lengths of 35mm and 50mm respectively, this 90*Male Orfs X Mbspp Adj Elbow provides a reliable connection in demanding hydraulic applications.

SKU: 6059-10-08

Supplier Part Number (MPN): 6059-10-08

Specifications

Brand
adapt-all
Connection Size 1
5/8 in
Connection Size 2
1/2 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
6059 Series
Thread Size
1-14 x 1/2-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Hugh M on Oct 3, 2025, 9:14 PM
fitting's got a 5/8 ORFS on one end and I need to tie into a 1/2 BSPP port on a piece of imported equipment, this the right part for that?
Answer by: Customer Support on Oct 5, 2025, 6:58 AM
Yeah, that's exactly what this fitting is built for. One end is 5/8" male ORFS with a 1-14 UNS thread, and the other is 1/2" male BSPP with a G 1/2-14 thread. If your equipment has a female BSPP port at that size, this crosses right over to your ORFS line without needing extra adapters in between.
Question by: Travis C on Aug 9, 2025, 9:01 AM
got a hose end that’s 5/8 ORFS male, will this elbow mate up on that side?
Answer by: Customer Support on Aug 10, 2025, 2:58 PM
Fit comes down to the thread and style on Side 1, and this elbow is a 5/8 inch male ORFS with a 1-14 UNS callout.
Question by: Danny H on Feb 4, 2026, 11:06 AM
Hey, will this elbow fitting work with a standard ORFS fitting on one side and a BSPP fitting on the other? Just wanna make sure before I order.
Answer by: Customer Support on Feb 6, 2026, 10:55 AM
Absolutely, this 90° elbow Adaptall fitting has a 5/8" male ORFS side and a 1/2" male BSPP side. It's designed to connect those two different types of fittings at a 90-degree angle.
