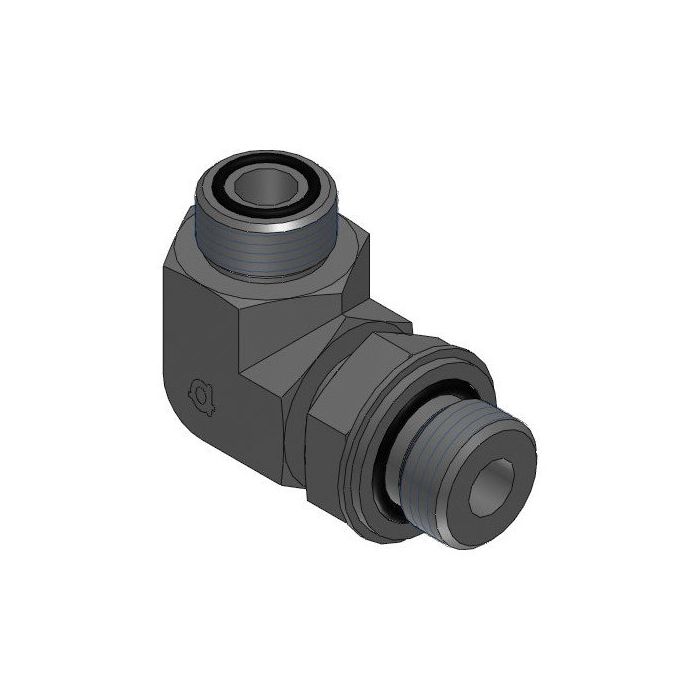

90*Male Orfs X Mbspp Adj Elbow

Description & Features

Constructed from steel, this 90-degree adjustable elbow connects a 3/4" Male ORFS port (1-13/16-12 UN thread) to a 1/2" Male BSPP port (G 1/2-14 thread), making it a practical solution for joining hydraulic lines where ORFS and BSPP fittings need to meet at a right angle. The adjustable design allows the elbow to be repositioned during installation to align hose or tube routing without compromising the seal.

The 90° Male Orfs X Mbspp Adj Elbow is an Adaptall fitting, with a Ch1 wrench width of 30mm, a Ch2 width of 27mm, an L1 length of 38mm, and an L2 length of 50mm. It suits hydraulic systems where mixed thread standards are in use, particularly in equipment built to both SAE and BSP specifications.

SKU: 6059-12-08

Supplier Part Number (MPN): 6059-12-08

Specifications

Brand adapt-all	Connection Size 1 3/4 in	Connection Size 2 1/2 in	Connection Type Male BSP, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Adjustable BSPP	Dimension Standards BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 6059 Series	Thread Size 1-3/16-12 x 1/2-14

Product Questions & Answers (2)

Question by: Ross M on Nov 3, 2025, 3:33 PM

trying to swap a fitting on a machine and i need 3/4 male ORFS on one end and 1/2 male BSPP on the other, both at 90 degrees. is that what this is?

Answer by: Customer Support on Nov 5, 2025, 9:20 AM

For mixed-thread hydraulic setups, this elbow is exactly that combination: a 3/4 inch male ORFS end with 1-13/16-12 UN threads, and a 1/2 inch male BSPP end with G 1/2-14 threads, in a 90 degree elbow shape.

Question by: Shane B on Feb 8, 2026, 5:57 PM

Got a machine running both SAE and British fittings and need to tie into a 1/2" BSPP port with a 3/4" ORFS line at a right angle. This the fitting that'll do that?

Answer by: Customer Support on Feb 10, 2026, 7:46 AM

Yeah, that's exactly what this one's built for. One end is a 3/4" Male ORFS with a 1-13/16-12 UN thread, the other is a 1/2" Male BSPP running G 1/2-14. The 90-degree angle handles the direction change, and since both sides are male, you're threading into female ports on your existing components. Steel construction, so it holds up in working hydraulic environments. Fits the mixed-standard situation you're describing right out of the box.
