90*Male Orfs X Mbspp Adj Elbow

Description & Features

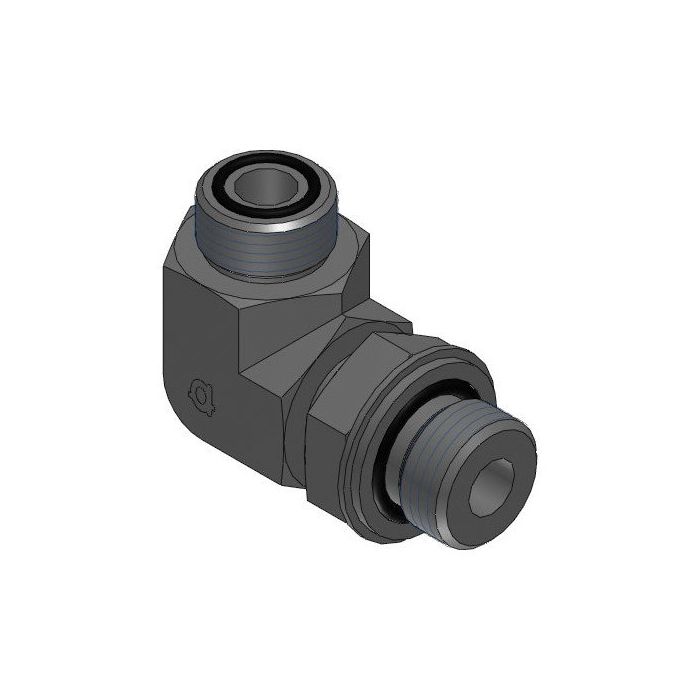

This steel 90° elbow Adaptall fitting features a 3/4" male ORFS (O-Ring Face Seal) end and a 3/4" male BSPP (British Standard Parallel Pipe) adjustable end. The Adaptall Ch1 width is 30mm, while the Adaptall Ch2 width measures 36mm. It has an Adaptall L1 length of 39mm and an Adaptall L2 length of 52mm.

The 90*Male Orfs X Mbspp Adj Elbow is designed to provide a reliable connection between ORFS and BSPP ports. The Side 1 Callout is 1-13/16 - 12 UN, and the Side 2 Callout is G 3/4 - 14.

SKU: 6059-12-12

Supplier Part Number (MPN): 6059-12-12

Specifications

Brand adapt-all	Connection Size 1 3/4 in	Connection Size 2 3/4 in	Connection Type Male BSP, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Adjustable BSPP	Dimension Standards BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453	Finish Zinc-Plated	Fitting Type 90 deg Elbow	Material Steel	Material Construction Carbon Steel	Series 6059 Series	Thread Size 1-3/16-12 x 3/4-14

Product Questions & Answers (2)

Question by: Neil T on Apr 4, 2026, 10:51 AM

Will this fitting hold up okay if I'm using it with some hydraulic equipment outdoors?

Answer by: Customer Support on Apr 6, 2026, 6:32 AM

This Adaptall fitting is made of steel, providing a robust connection for hydraulic systems.

Question by: Howard F on Sep 23, 2025, 9:38 AM

Got a piece of equipment running BSPP ports and need to tie into an ORFS line at a right angle, this fitting do that job?

Answer by: Customer Support on Sep 25, 2025, 6:45 AM

That's what it's built for. One end is 3/4" male ORFS with a 1-13/16-12 UN thread, and the other is 3/4" male BSPP with a G 3/4-14 thread. The 90-degree elbow shape handles the direction change, so if you've got those two port types meeting at a corner, this fitting bridges them without needing extra adapters in between.
