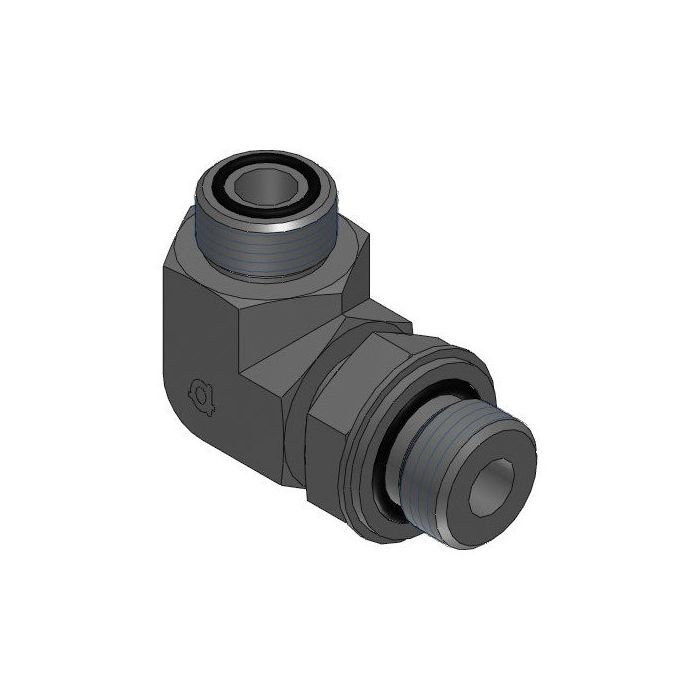

main product photo

90*Male Orfs X Mbspp Adj Elbow

Ask A Question

Description & Features

Crafted from robust steel, this 90° elbow fitting is designed to facilitate seamless hydraulic connections where space constraints are a concern. It features a Male ORFS (O-Ring Face Seal) connection on the first side, sized at 3/4" with a thread callout of 1-13/16 - 12 UN. The second side offers a Male BSPP (British Standard Pipe Parallel) connection, measuring 1" with a G 1 - 11 thread. This configuration ensures a secure and reliable connection in industrial systems.

Engineered by Adaptall, this fitting combines precise dimensions with durable construction, boasting a CH1 width of 36mm and a CH2 width of 41mm. The lengths are measured at L1: 42mm and L2: 60mm, ensuring compatibility with various hydraulic setups. Its steel construction ensures longevity and resistance to wear in demanding environments.

SKU: 6059-12-16

Supplier Part Number (MPN): 6059-12-16

Specifications

Brand
adapt-all
Connection Size 1
3/4 in
Connection Size 2
1 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
6059 Series
Thread Size
1-3/16-12 x 1-11

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Billy R on Oct 3, 2025, 7:36 PM
got a piece of equipment running a 3/4" ORFS port and I need to tie into a 1" BSPP line at a right angle, this fitting do that?
Answer by: Customer Support on Oct 4, 2025, 8:09 PM
That's what this one's built for. One end is a 3/4" Male ORFS with a 1-13/16 - 12 UN thread, and the other end is a 1" Male BSPP on a G 1 - 11 thread. The 90-degree elbow lets you make that turn without needing a separate adapter or an additional elbow in the line. Both sides are male, so make sure your ports are female on each end before ordering.
