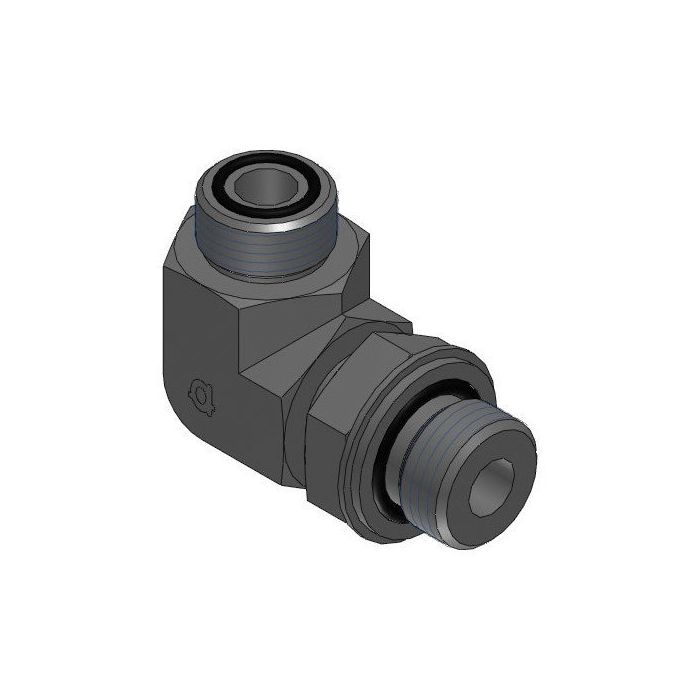

main product photo

90*Male Orfs X Mbspp Adj Elbow

Ask A Question

Description & Features

This 90° elbow fitting is expertly crafted from durable steel, ensuring strength and longevity in demanding industrial environments. Designed for optimal performance, it features a Male ORFS connection on one side with a 1-7/16 - 12 UN thread and a Male BSPP connection on the other side with a G 1 - 11 thread. This configuration makes it ideal for applications requiring reliable fluid transfer and pressure resistance.

The 90*Male Orfs X Mbspp Adj Elbow is engineered for precision, with a channel width of 36mm on one side and 40mm on the other for secure engagement. Its dimensions, including an L1 length of 44mm and an L2 length of 60mm, offer versatility in tight spaces, making it a practical choice for hydraulic systems. The Adaptall brand ensures compatibility and quality in line with industry standards.

SKU: 6059-16-16

Supplier Part Number (MPN): 6059-16-16

Alternate Part Numbers: C1HQ63

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
6059 Series
Thread Size
1-7/16-12 x 1-11

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Phil B on Nov 10, 2025, 9:48 AM
trying to swap out an elbow on my hydraulic line, is this one the kind that goes from a 1 inch male ORFS to a 1 inch male BSPP?
Answer by: Customer Support on Nov 12, 2025, 6:04 AM
You are looking at a 90 degree adjustable elbow with a 1 inch Male ORFS on one end and a 1 inch Male BSPP on the other. The ORFS side is 1-7/16 - 12 UN thread, and the BSPP side is G 1 - 11.
Question by: Stan S on Jul 29, 2025, 9:04 PM
Got a hydraulic line running ORFS on one end and BSPP on the other, does this fitting actually bridge both them thread types in a single elbow?
Answer by: Customer Support on Jul 31, 2025, 6:28 AM
That's what it does. One side is Male ORFS with a 1-7/16 - 12 UN thread, and the other is Male BSPP running a G 1 - 11 thread. Both sides are 1 inch in size, so you're getting a direct cross-standard connection without needing extra adapters in between. The 90 degree angle also helps when you're working in a spot where a straight fitting just won't clear.
