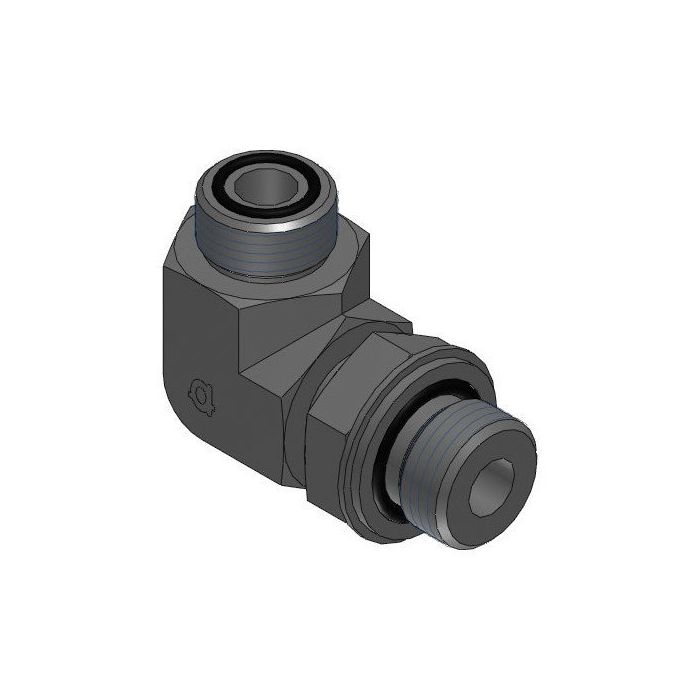

90*Male Orfs X Mbspp Adj Elbow

Ask A Question

Description & Features

Designed for industrial applications, this 90° elbow fitting is crafted from robust steel, ensuring durability and reliable performance under demanding conditions. Featuring a 1-7/16 - 12 UN ORFS male connection on one end and a G 1-1/4 - 11 BSPP male connection on the other, this elbow fitting provides versatility and ease of connection in hydraulic systems.

The 90*Male Orfs X Mbspp Adj Elbow combines precision engineering with adaptability, making it ideal for systems that require a secure and adjustable angle connection. With dimensions including a CH1 width of 41mm and a CH2 width of 50mm, it provides a compact yet efficient solution for various industrial setups. The fitting's L1 and L2 lengths of 60mm and 44.3mm respectively, ensure a snug fit.

SKU: 6059-16-20

Supplier Part Number (MPN): 6059-16-20

Specifications

Brand
adapt-all
Connection Size 1
1 in
Connection Size 2
1-1/4 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
6059 Series
Thread Size
1-7/16-12 x 1-1/4-11

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Scott S on Mar 22, 2026, 3:44 PM
got a hose end that’s 1-7/16-12 UN ORFS male. will this elbow mate up on that side?
Answer by: Customer Support on Mar 24, 2026, 7:02 AM
On the ORFS side, the elbow has a 1-7/16 - 12 UN male ORFS connection (listed as 1 inch size), so it matches that thread callout and connection type.
Question by: Harvey R on Mar 16, 2026, 11:10 AM
Will this fitting hold up okay in a hydraulic system running around 2500 PSI?
Answer by: Customer Support on Mar 17, 2026, 12:39 PM
Designed for industrial applications, this steel elbow fitting should provide reliable performance under demanding conditions, so 2500 PSI should be within its safe operating range.
