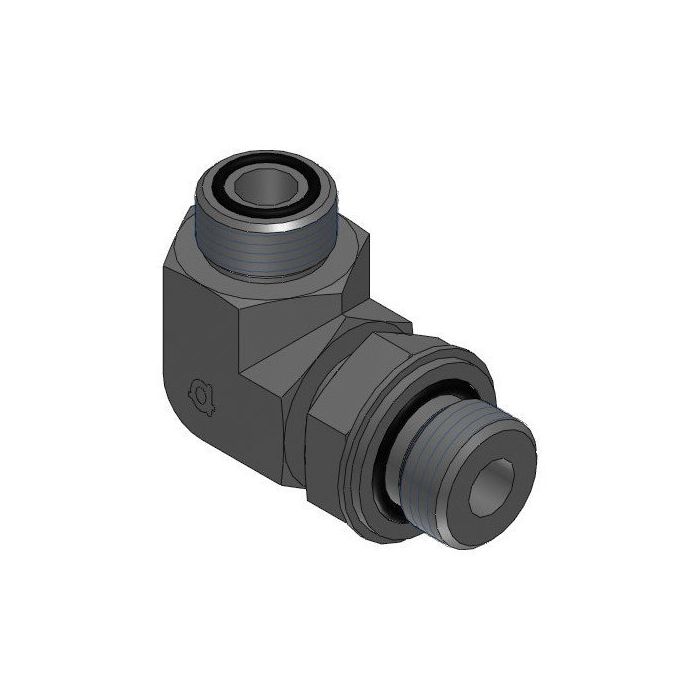

main product photo

90*Male Orfs X Mbspp Adj Elbow

Ask A Question

Description & Features

This steel 90° elbow features a male ORFS (O-ring face seal) on Side 1 with a 1-1/4" size and 1-11/16 - 12 UN callout. Side 2 features a 1-1/4" male BSPP (British Standard Parallel Pipe) with a G 1-1/4 - 11 callout.

The Adaptall 90*Male Orfs X Mbspp Adj Elbow has a Ch1 width of 41mm and a Ch2 width of 50mm. The L1 length is 59mm, and the L2 length is 43.9mm.

SKU: 6059-20-20

Supplier Part Number (MPN): 6059-20-20

Specifications

Brand
adapt-all
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
90 deg Elbow
Material
Steel
Material Construction
Carbon Steel
Series
6059 Series
Thread Size
1-11/16-12 x 1-1/4-11

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Norm B on Sep 2, 2025, 4:01 PM
What's the width on each side of this elbow fitting? Gotta make sure it'll fit in the space I've got.
Answer by: Customer Support on Sep 4, 2025, 6:16 AM
Ch1 width is 41mm and Ch2 width is 50mm.
Question by: Dean T on Nov 23, 2025, 8:27 AM
trying to swap an elbow on a hose line, is this one 1-1/4 ORFS on one end and 1-1/4 BSPP on the other?
Answer by: Customer Support on Nov 25, 2025, 6:01 AM
On the ORFS side, it is a 1-1/4 inch male with a 1-11/16 - 12 UN thread callout. The other end is a 1-1/4 inch male BSPP with a G 1-1/4 - 11 callout.
Question by: Cheryl F on Jul 12, 2025, 6:36 PM
Got a machine running BSPP fittings on one end and ORFS on the other, this elbow gonna bridge that gap at 1-1/4 inch on both sides?
Answer by: Customer Support on Jul 14, 2025, 6:19 AM
Both ports on this fitting are 1-1/4 inch, so yes, it connects a 1-1/4 male ORFS (1-11/16 - 12 UN thread) on one side to a 1-1/4 male BSPP (G 1-1/4 - 11 thread) on the other. The 90 degree angle also means you can redirect the line without needing a separate elbow and adapter stacked together. Steel construction throughout.
