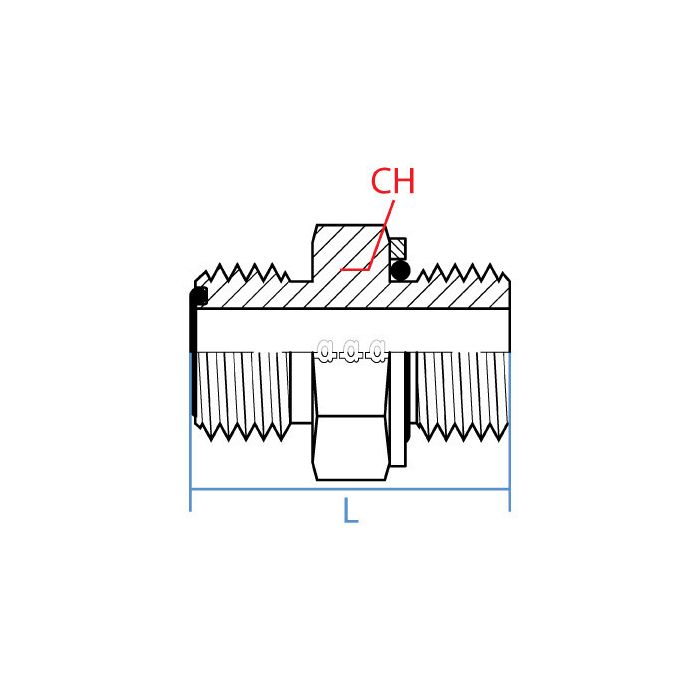

main product photo

Male Orfs X Male Metric Sealed

Ask A Question

Description & Features

Designed for robust industrial applications, the Male Orfs X Male Metric Sealed adapter offers a reliable connection between ORFS and metric hydraulic systems. This straight adapter is crafted from durable steel, ensuring longevity and resistance to wear in demanding environments. The connection on Side 1 features a 9/16 - 18 UNF thread with a male ORFS fitting and a 1/4" size, while Side 2 is equipped with a 10mm male metric connection utilizing an M10 X 1.0 thread. These dimensions ensure compatibility with a wide range of hydraulic applications, making it suitable for use in various industrial settings.

With precise dimensions, 16mm across the wrench flats and a length of 26mm, this adapter ensures a snug fit and leak-proof performance, vital for maintaining system integrity. The Adaptall brand is synonymous with quality and precision engineering, making this adapter a trusted choice for professionals seeking reliable hydraulic connections.

SKU: 6068-04-10

Supplier Part Number (MPN): 6068-04-10

Specifications

Connection Size 1
1/4 in
Connection Size 2
10 mm
Connection Type
Male Metric, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male Metric
Dimension Standards
DIN 7631, ISO 6149, ISO 8434-3, ISO 9974, SAE J1453
Dimensions
27 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
16 mm
Material
Steel
Material Construction
Carbon Steel
Series
6068 Series
Thread Size
9/16-18 x M10x1

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Lyle H on Apr 1, 2026, 6:55 PM
What kinda pressure can this thing handle? I'm hookin' it up to a pretty strong hydraulic system.
Answer by: Customer Support on Apr 3, 2026, 8:57 AM
This adapter is designed for connecting ORFS and metric hydraulic systems. It's made from steel, so it should hold up in demanding industrial environments.
Question by: Ray S on Mar 10, 2026, 6:24 PM
Got a metric port on a piece of equipment that's M10 X 1.0 and need to tie it into an ORFS line runnin 9/16-18 UNF. This the right adapter for that?
Answer by: Customer Support on Mar 12, 2026, 11:03 AM
That's what this one's built for. One end is a 9/16-18 UNF male ORFS at 1/4" size, and the other end is a male metric M10 X 1.0 at 10mm. Steel construction, straight configuration. If your ports match those specs, you're good to go.
Question by: Tony H on Oct 27, 2025, 12:36 PM
Trying to match up an ORFS hose end to a metric port, is this the straight adapter that goes from 9/16-18 UNF ORFS male over to M10 x 1.0 male?
Answer by: Customer Support on Oct 29, 2025, 6:52 AM
For bridging those two standards, it’s a straight steel adapter with a male ORFS on Side 1 (9/16-18 UNF, 1/4 inch size) and a male metric sealed end on Side 2 (M10 x 1.0, 10 mm).
