Male Orfs X Male Metric Sealed

Description & Features

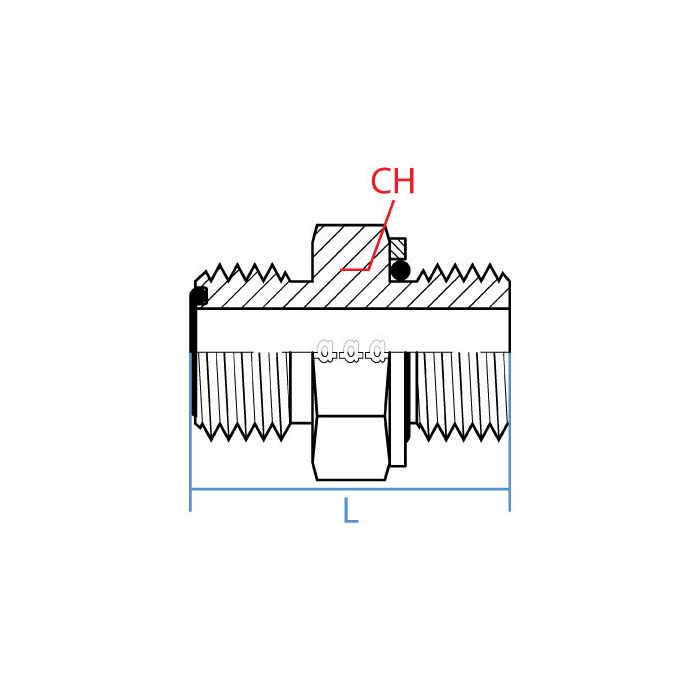

This steel fitting is a Male Orfs X Male Metric Sealed adapter with a straight shape.

It features a 9/16 - 18 UNF Orfs male connection with a 1/4" size on one side, and a M12 X 1.5 metric male connection with a 12mm size on the other.

SKU: 6068-04-12

Supplier Part Number (MPN): 6068-04-12

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-04-12	Product Weight 0.05 lbs

Product Questions & Answers (2)

Question by: Vince G on Dec 23, 2025, 8:01 AM

Will this fitting work to connect a 12mm metric port to a 9/16-18 UNF Orfs port?

Answer by: Customer Support on Dec 24, 2025, 4:14 PM

Yes, this Adaptall fitting is designed specifically to adapt a 9/16 - 18 UNF Orfs male connection to a M12 X 1.5 metric male connection. It's a straight adapter, so it'll give you a direct connection between the two.

Question by: Ralph H on Feb 24, 2026, 9:58 AM

Got a metric port on a hydraulic block that's M12 x 1.5 and need to tie into an ORFS line on the other end. This the right fitting for that?

Answer by: Customer Support on Feb 26, 2026, 8:19 AM

That's what this adapter is built for. One end is a 9/16-18 UNF ORFS male, which covers the 1/4" size on that side, and the other end is an M12 x 1.5 metric male with a 12mm size. Straight body, no angle, so it goes in clean when you've got a direct inline connection to make. Steel construction holds up well in standard hydraulic service.
