Male Orfs X Male Metric Sealed

Description & Features

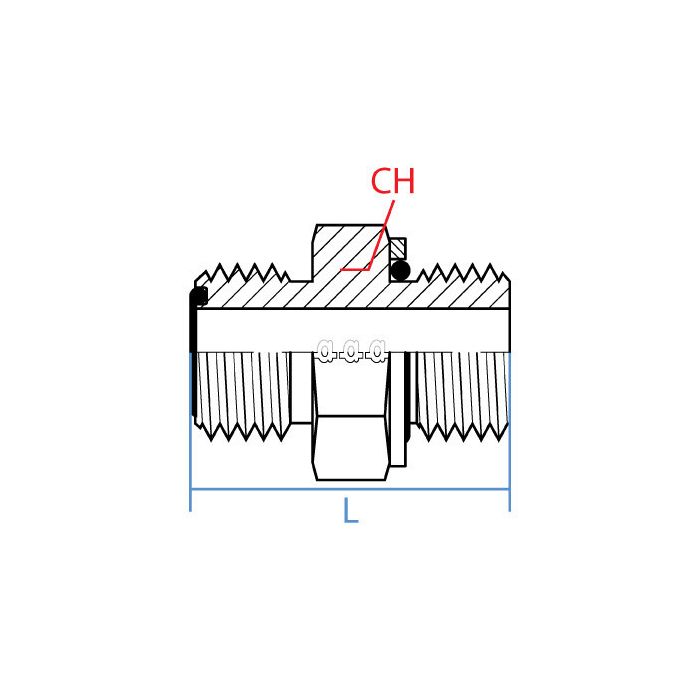

Constructed from steel in a straight configuration, this adapter connects a 1/4" Male ORFS fitting (9/16-18 UNF thread) on one end to a 14mm Male Metric Sealed port (M14 x 1.5 thread) on the other. The sealed metric end provides reliable leak-free performance in hydraulic circuits where metric ported components meet ORFS-threaded lines.

The Male Orfs X Male Metric Sealed is an Adaptall product, suited for cross-standard hydraulic connections commonly found in mobile equipment, industrial machinery, and imported systems that combine metric and unified thread standards. Steel construction offers the durability needed for pressurized hydraulic service.

SKU: 6068-04-14

Supplier Part Number (MPN): 6068-04-14

Specifications

Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 9/16 - 18 UNF	Side 1 Gender M	Side 1 Size 1/4"	Side 1 Type Orfs	Side 2 Callout M14 X 1.5	Side 2 Gender M	Side 2 Size 14mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-04-14	Product Weight 0.09 lbs

Product Questions & Answers (3)

Question by: Johnny W on Nov 22, 2025, 5:26 PM

Got a piece of imported equipment with a 14mm metric port and I need to tie it into a line that's running ORFS fittings. This the right adapter for that?

Answer by: Customer Support on Nov 23, 2025, 9:41 PM

That's what this one's built for. One end is a 1/4" Male ORFS with a 9/16-18 UNF thread, and the other is a 14mm Male Metric Sealed running M14 x 1.5. Steel construction, straight configuration. Connects metric ported components right into an ORFS-threaded hydraulic line without needing additional adapters in between.

Question by: Ralph S on Mar 9, 2026, 7:52 PM

trying to hook an ORFS hose up to a metric port, is this the right adapter for that?

Answer by: Customer Support on Mar 11, 2026, 4:02 PM

For cross-standard hook-ups, it bridges a 1/4 inch male ORFS end with 9/16-18 UNF threads to a 14 mm male metric sealed end with M14 x 1.5 threads, all in a straight steel adapter.

Question by: Brent M on Dec 3, 2025, 3:09 PM

Will this fitting work for connecting a 1/4" ORFS line to a M14 x 1.5 port on a hydraulic valve?

Answer by: Customer Support on Dec 5, 2025, 8:52 AM

Yes sir, this adapter is made specifically for that purpose. It's got the 1/4" Male ORFS on one end and the 14mm Male Metric Sealed on the other, so it'll let you hook up those different thread types without any trouble.
