Male Orfs X Male Metric Sealed

Description & Features

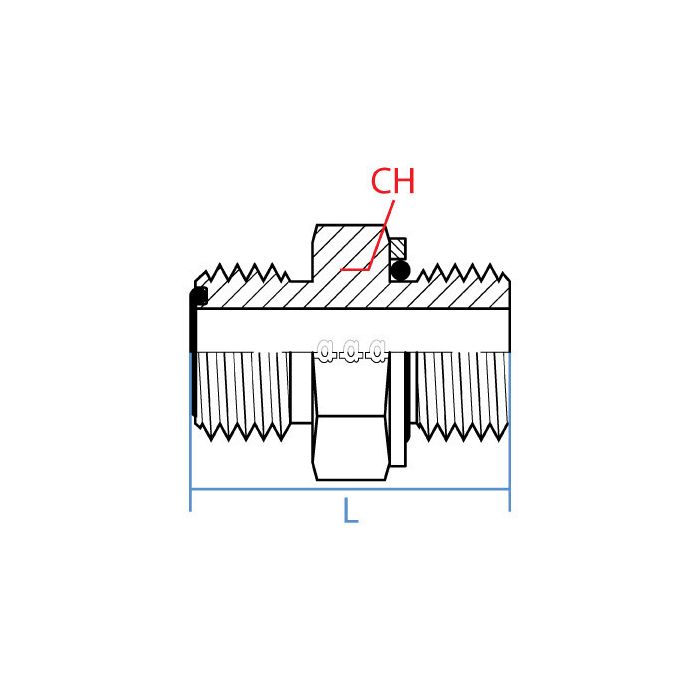

Constructed from durable steel, this straight Male Orfs X Male Metric Sealed fitting is designed for reliable performance in hydraulic systems. With a compact length of 32.2mm and a width of 19mm, it ensures a secure connection in tight spaces. The fitting features an 11/16 - 16 UN male Orfs thread on one side and a M12 X 1.5 male metric thread on the other, offering versatility and compatibility with various hydraulic components.

Manufactured by Adaptall, this fitting is engineered for precision and longevity in demanding industrial environments. It is ideal for applications requiring robust sealing and efficient fluid transfer. The combination of Orfs and metric connections makes it suitable for projects that demand adaptability in design.

SKU: 6068-06-12

Supplier Part Number (MPN): 6068-06-12

Specifications

CH Width 19mm	L Length 32.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout M12 X 1.5	Side 2 Gender M	Side 2 Size 12mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-06-12	Product Weight 0.12 lbs

Product Questions & Answers (3)

Question by: Frank A on Jan 9, 2026, 9:30 PM

Will this fitting work with standard metric hydraulic lines, or is it a special type?

Answer by: Customer Support on Jan 11, 2026, 7:33 AM

This fitting is designed with a M12 X 1.5 male metric thread on one side, making it compatible with standard metric hydraulic lines that match this specification. The other side features an 11/16 - 16 UN male Orfs thread.

Question by: Travis H on Mar 29, 2026, 9:25 PM

trying to swap a line over, is this fitting the one that goes from 11/16-16 ORFS to M12 x 1.5 metric?

Answer by: Customer Support on Mar 31, 2026, 7:32 PM

Yes, it is a straight steel adapter with a male 11/16 - 16 UN ORFS end on one side and a male M12 x 1.5 metric end on the other, so it is meant for that exact ORFS-to-metric connection.

Question by: Scott F on Jul 24, 2025, 5:43 PM

Got a metric port on a pump I'm trying to tie into an Orfs line, this the kind of fitting that'd bridge that gap?

Answer by: Customer Support on Jul 26, 2025, 5:24 PM

That's what this one's built for. One end is an 11/16-16 UN male Orfs thread, the other is M12 x 1.5 male metric, so it connects those two thread types in a straight shot. Both ends are male, so you'd need female ports or fittings on both sides of wherever it's going in. Steel construction, 32.2mm long, 19mm across the wrench flats. Adaptall makes these to pretty tight tolerances, so the fit tends to be clean when the ports are in good shape.
