Male Orfs X Male Metric Sealed

Description & Features

This straight steel fitting, also known as a Male Orfs X Male Metric Sealed, is manufactured by Adaptall. It adapts a 3/8" ORFS (11/16 - 16 UN) male connection to a 14mm metric male connection (M14 X 1.5).

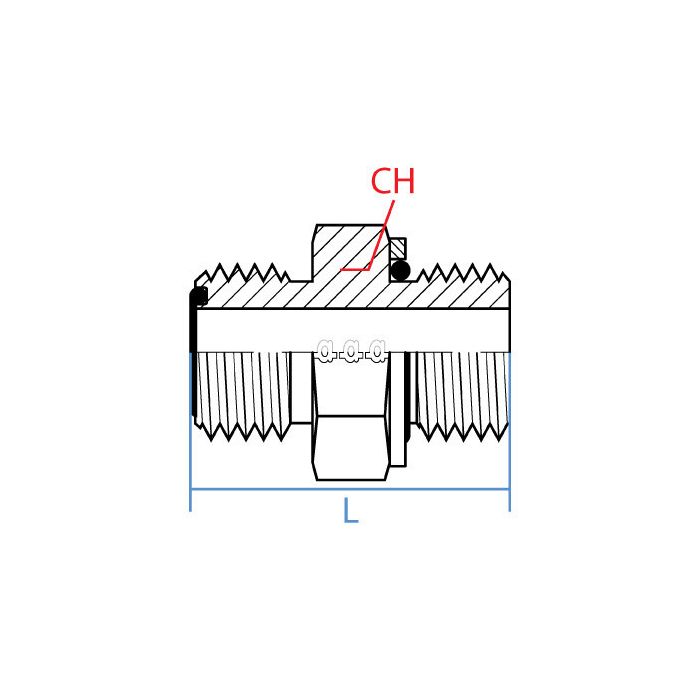

This Adaptall fitting has a 19mm wrench flat and an overall length of 32.1mm.

SKU: 6068-06-14

Supplier Part Number (MPN): 6068-06-14

Specifications

Connection Size 1 3/8 in	Connection Size 2 14 mm	Connection Type Male Metric, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Metric	Dimension Standards DIN 7631, ISO 6149, ISO 8434-3, ISO 9974, SAE J1453	Dimensions 32 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 19 mm	Material Steel	Material Construction Carbon Steel	Series 6068 Series	Thread Size 11/16-16 x M14x1.5

Product Questions & Answers (1)

Question by: Judy J on Jul 15, 2025, 4:11 PM

Does the metric side on this fitting use a 1.5 pitch thread, or is that something I'd need to double-check before ordering?

Answer by: Customer Support on Jul 17, 2025, 3:28 PM

M14 X 1.5 is the thread spec on the metric male side, so 1.5mm pitch is confirmed. The ORFS side runs 11/16-16 UN, which is standard for 3/8" ORFS male connections. Both thread callouts are fixed on this fitting, no variations.
