Male Orfs X Male Metric Sealed

Description & Features

The Male Orfs X Male Metric Sealed from Adaptall America is precision-engineered to ensure optimal performance in various industrial applications. This high-quality steel component is designed with a straight shape, offering reliable connection and durability.

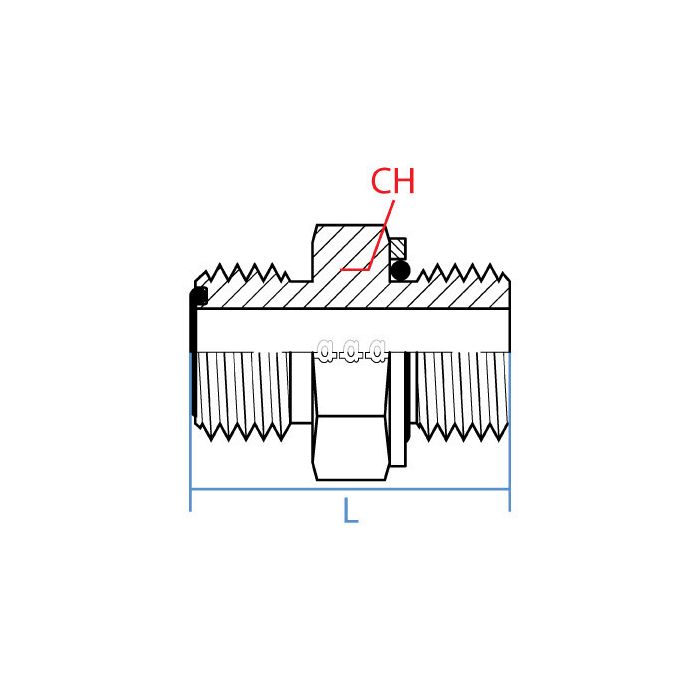

Featuring a 3/8" male ORFS on one end and a M16 x 1.5 male metric thread on the other, this fitting ensures a secure and efficient interface. It boasts a width of 22mm and a length of 33.3mm, providing consistent and stable functionality.

The product does not require any additional components such as check valves, thread sealants, or mandrels, simplifying setup and maintenance. Its robust steel construction guarantees longevity and resilience in demanding environments.

Supplier Part Number: 6068-06-16

Specifications

CH Width 22mm	L Length 33.3mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 11/16 - 16 UN	Side 1 Gender M	Side 1 Size 3/8"	Side 1 Type Orfs	Side 2 Callout M16 X 1.5	Side 2 Gender M	Side 2 Size 16mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-06-16	Product Weight 0.13 lbs

Product Questions & Answers (3)

Question by: Tommy R on Oct 5, 2025, 9:30 AM

trying to hook a 3/8 ORFS line to a metric port, is this the right adapter or am i off a size

Answer by: Customer Support on Oct 7, 2025, 8:03 AM

The ends are 3/8 inch male ORFS (11/16-16 UN thread) on one side and M16 x 1.5 male metric on the other. If those are the two thread callouts you need to connect, this straight steel adapter is the correct match.

Question by: Kurt W on Oct 8, 2025, 8:55 PM

Will this fitting hold up alright in a hydraulic system running around 3000 PSI?

Answer by: Customer Support on Oct 10, 2025, 8:04 PM

It's made from robust steel, which should provide the durability needed for demanding hydraulic environments.

Question by: Darryl R on Nov 10, 2025, 8:00 PM

Got a hydraulic line coming off a European-built piece of equipment with an M16 x 1.5 metric port, and I need to tie into a system running ORFS fittings. This adapter gonna work for that kind of hookup?

Answer by: Customer Support on Nov 12, 2025, 7:23 AM

That's exactly the application this fitting is built for. One end carries a 3/8" male ORFS thread (11/16-16 UN) and the other end is M16 x 1.5 male metric, so it bridges those two thread standards in a single straight adapter. Both ends are male, so make sure your mating ports are female on each side before ordering. Steel construction holds up well in working hydraulic environments.
