Male Orfs X Male Metric Sealed

Description & Features

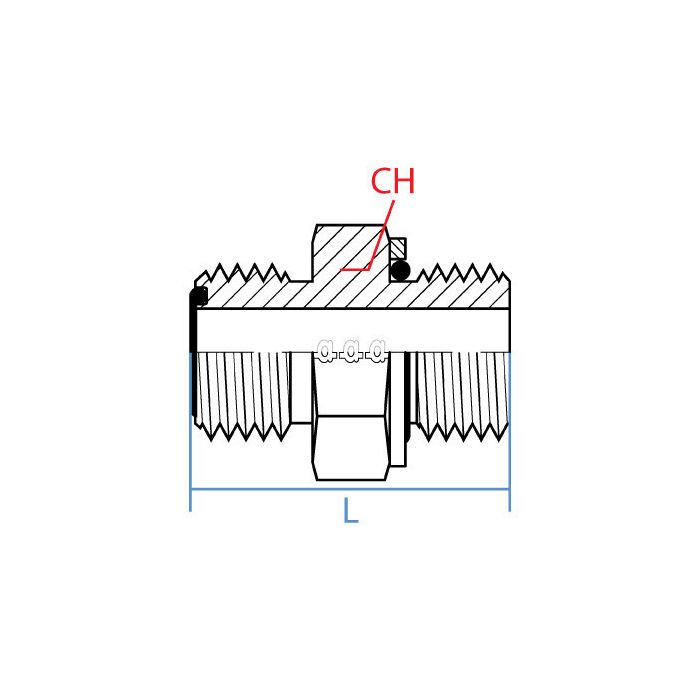

This straight steel adapter features a Male Orfs X Male Metric Sealed configuration.

The Adaptall fitting has a Side 1 callout of 1 - 14 UNS with a 5/8" size and Orfs type. Side 2 features a M18 X 1.5 callout with an 18mm size and Metric type. It has a 27mm Adaptall Ch Width and an Adaptall L Length of 40.9mm.

SKU: 6068-10-18

Supplier Part Number (MPN): 6068-10-18

Specifications

Connection Size 1 5/8 in	Connection Size 2 18 mm	Connection Type Male Metric, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Metric	Dimension Standards DIN 7631, ISO 6149, ISO 8434-3, ISO 9974, SAE J1453	Dimensions 40.5 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 6068 Series	Thread Size 1-14 x M18x1.5

Product Questions & Answers (1)

Question by: Carl J on Feb 21, 2026, 9:22 AM

trying to match up an adapter i pulled off a hose, one side is 1-14 UNS ORFS and the other is M18x1.5. is that what this one is?

Answer by: Customer Support on Feb 22, 2026, 12:43 PM

For a straight steel adapter with those exact thread callouts, yes. Side 1 is Male ORFS with a 1 - 14 UNS thread and a 5/8 inch size, and Side 2 is Male metric sealed with an M18 x 1.5 thread and an 18 mm size.
