Male Orfs X Male Metric Sealed

Description & Features

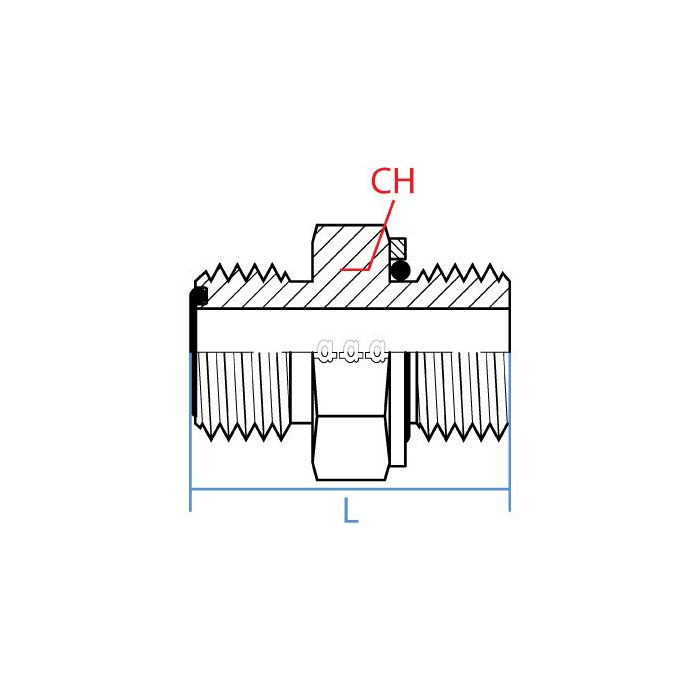

Manufactured from steel in a straight configuration, this adapter connects a 3/4" male ORFS thread (1-13/16-12 UN) on one end to a male metric sealed port (M22 x 1.5) on the other. The sealed metric side provides a leak-resistant connection suited to hydraulic circuits where fluid integrity under pressure is a priority. With a wrench-flat width of 32mm and an overall length of 45.2mm, the fitting is compact enough for installations with limited clearance.

The Male Orfs X Male Metric Sealed adapter is an Adaptall product, designed for use where a transition between ORFS and metric port standards is required. Steel construction makes it appropriate for general-purpose hydraulic line work across mobile and industrial equipment.

SKU: 6068-12-22

Supplier Part Number (MPN): 6068-12-22

Specifications

CH Width 32mm	L Length 45.2mm	Adaptall Material Steel	Adaptall Shape Straight	Side 1 Callout 1-13/16 - 12 UN	Side 1 Gender M	Side 1 Size 3/4"	Side 1 Type Orfs	Side 2 Callout M22 X 1.5	Side 2 Gender M	Side 2 Size 22mm	Side 2 Type Metric	Brand Adaptall America	Brand Adaptall	Pack Size 1.00	UOM EA	Supplier Part Number 6068-12-22	Product Weight 0.31 lbs

Product Questions & Answers (1)

Question by: Sheila T on May 18, 2025, 6:41 AM

Will this here fitting hold up okay for regular hydraulic work on farm equipment?

Answer by: Customer Support on May 20, 2025, 6:17 AM

Steel construction makes this adapter suitable for general-purpose hydraulic line work on both mobile and industrial equipment.
