Male Orfs X Male Metric Sealed

Description & Features

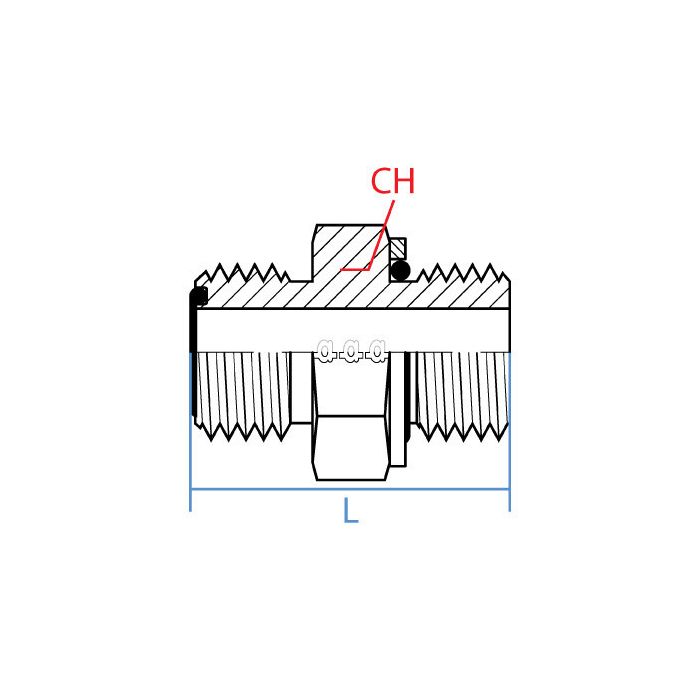

This straight steel adapter features a Male Orfs X Male Metric Sealed connection. It is made from durable steel and measures 45.8mm in length, with a 32mm wrench flat.

It features a 3/4" Side 1 Orfs M connection with a 1-13/16 - 12 UN callout, and a 27mm Side 2 Metric M connection with a M27 X 2.0 callout.

SKU: 6068-12-27

Supplier Part Number (MPN): 6068-12-27

Specifications

Connection Size 1 3/4 in	Connection Type Male Metric, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Metric	Dimension Standards DIN 7631, ISO 6149, ISO 8434-3, ISO 9974, SAE J1453	Dimensions 47 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 36 mm	Material Steel	Material Construction Carbon Steel	Series 6068 Series	Thread Size 1-3/16-12 x M27x2

Product Questions & Answers (1)

Question by: Harvey G on May 5, 2025, 11:45 AM

So this is just an adapter, right? No hose included or anything?

Answer by: Customer Support on May 7, 2025, 10:18 AM

That's correct, this is a straight steel adapter to connect different types of hydraulic fittings. It features a Male Orfs connection on one side and a Male Metric Sealed connection on the other.
