M.Orfs X M.Bspp Adj Branch Tee

Ask A Question

Description & Features

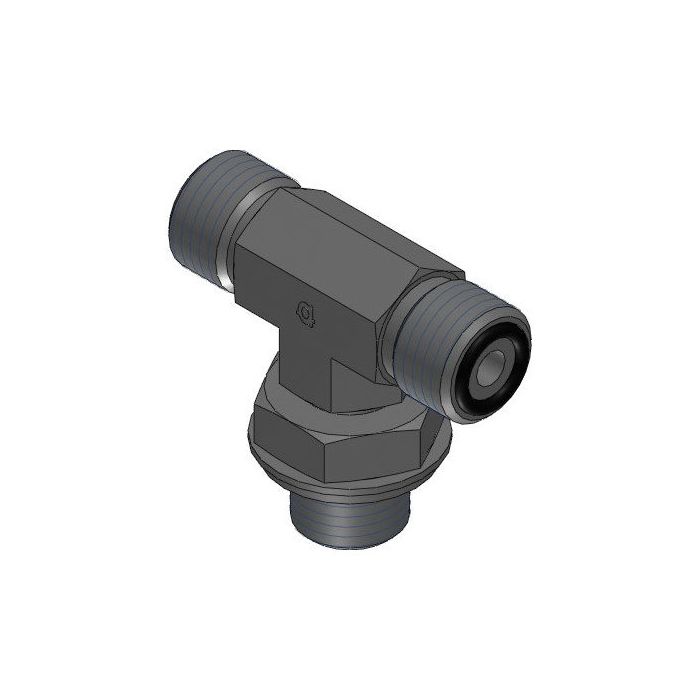

Designed for robust hydraulic applications, this steel M.Orfs X M.Bspp Adj Branch Tee offers reliable performance with its precise construction. The tee features male 9/16 - 18 UNF connections on both sides, ensuring compatibility with ORFS fittings, and a male G 1/4 - 19 BSPP connection at the branch. This allows for versatile integration into various hydraulic systems.

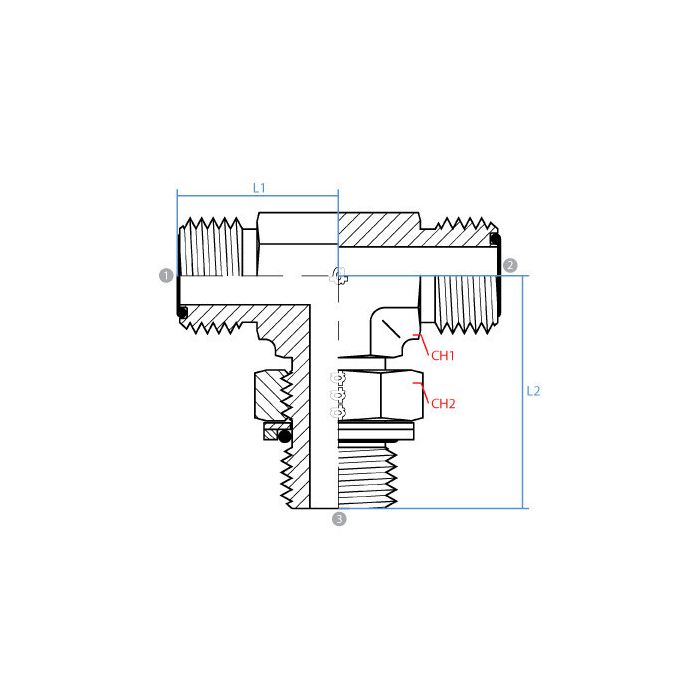

With dimensions tailored for efficient use, the component boasts a Channel 1 width of 18.5mm, Channel 2 width of 19mm, and lengths of 24mm and 36.5mm. Its high-quality steel construction guarantees durability and optimal resistance to pressure. The Adaptall brand ensures precision engineering, meeting the demands of industrial environments.

SKU: 6159-04-04-04

Supplier Part Number (MPN): 6159-04-04-04

Specifications

Brand
adapt-all
Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male ORFS
Connection Type 3
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
6159 Series
Thread Size
9/16-18 x 1/4-19

Product Questions & Answers (2)

Question by: Gene A on Aug 31, 2025, 1:39 PM
both sides of the tee got the same 9/16-18 UNF thread, so does that mean they're both ORFS connections or is one of em different?
Answer by: Customer Support on Sep 2, 2025, 6:18 AM
Both side connections are male ORFS at 9/16-18 UNF, yes. The branch connection coming off the middle is where things differ. That one's a male G 1/4-19 BSPP thread, so you're working with two different thread standards in the same fitting. Keeps your main ORFS line running straight through while the branch taps off in BSPP.
Question by: Tammy H on Oct 6, 2025, 4:14 PM
Reckon this'll hold up alright in a hydraulic system that sees some pretty high pressure?
Answer by: Customer Support on Oct 7, 2025, 7:24 PM
This tee, constructed from high-quality steel, is designed for optimal resistance to pressure in robust hydraulic applications.
