M.Orfs X M.Bspp Adj Branch Tee

Ask A Question

Description & Features

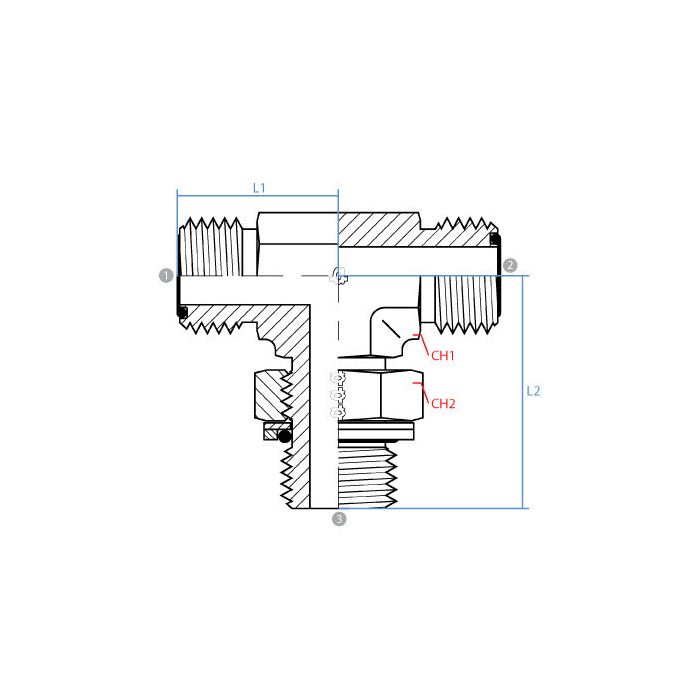

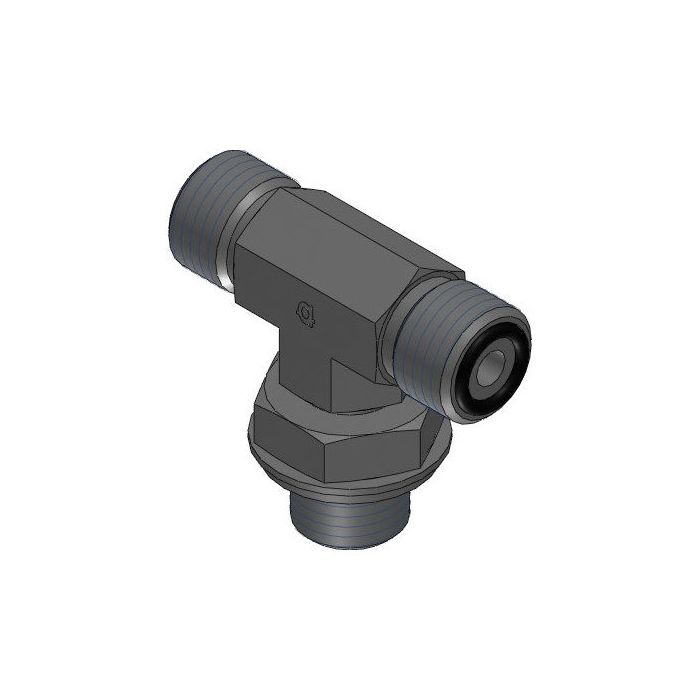

This steel tee fitting features male ORFS connections on two ends, both with a 3/8" size and 11/16 - 16 UN callout. The third connection is a 3/8" male BSPP adjustable branch.

The Adaptall M.Orfs X M.Bspp Adj Branch Tee provides a reliable connection point, with a side 1 width of 19mm and a side 2 width of 24mm. Side 1 length measures 27mm, while side 2 length is 38.5mm.

SKU: 6159-06-06-06

Supplier Part Number (MPN): 6159-06-06-06

Specifications

Brand
adapt-all
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Size 3
3/8 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male ORFS
Connection Type 3
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
Tee
Hex Size
19 x 22 mm
Material
Steel
Material Construction
Carbon Steel
Series
6159 Series
Thread Size
11/16-16 x 3/8-19

Product Questions & Answers (2)

Question by: Chad J on May 12, 2025, 4:24 PM
Can this tee handle, like, normal hydraulic pressures without blowing apart?
Answer by: Customer Support on May 14, 2025, 6:39 AM
This tee is constructed from steel, providing a robust connection point for hydraulic applications.
Question by: Marvin R on Mar 13, 2026, 10:46 AM
trying to tee off a 3/8 line, are the two straight-through ends ORFS male 11/16-16?
Answer by: Customer Support on Mar 14, 2026, 4:31 PM
For the run of the tee, you get two male ORFS ends, both sized 3/8 inch with an 11/16-16 UN callout.
