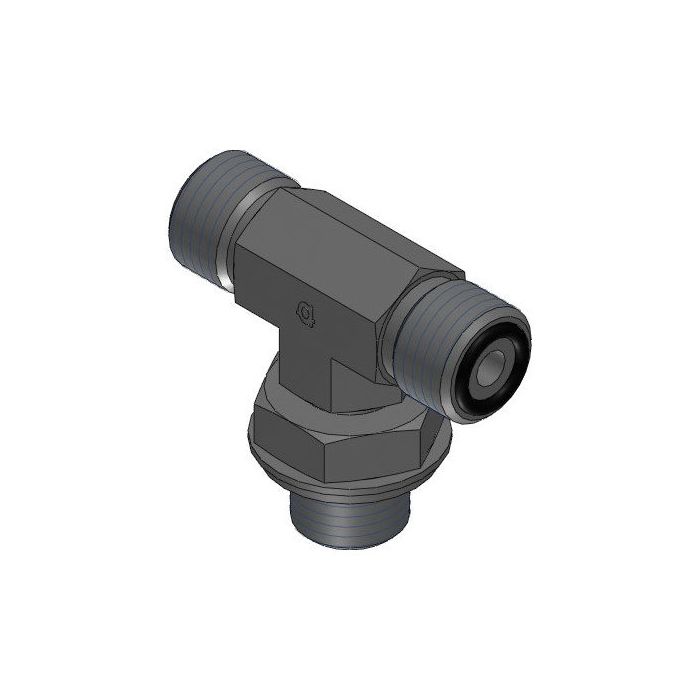

M.Orfs X M.Bspp Adj Branch Tee

Ask A Question

Description & Features

This steel tee adapter features Male ORFS ends on two sides, each with a 1/2" size and 13/16 - 16 UN callout. The third side features a 1/2" Male BSPP end with a G 1/2 - 14 callout.

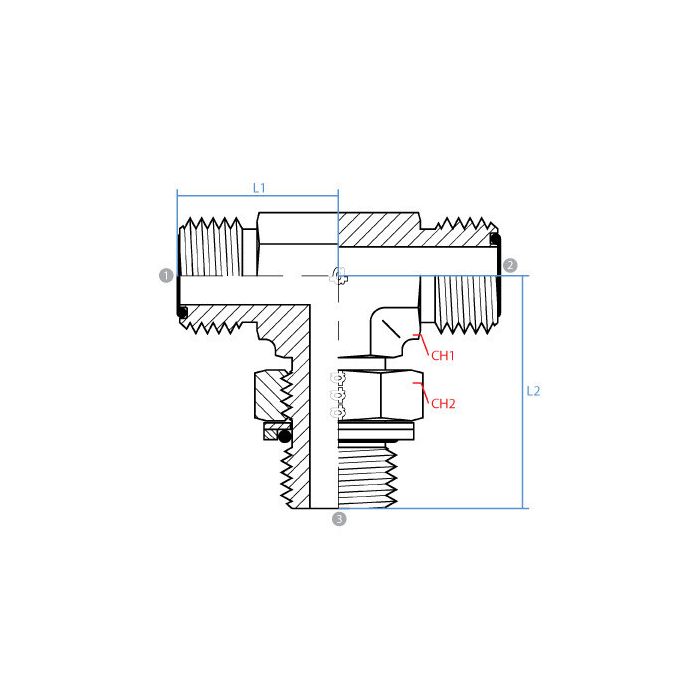

The Adaptall M.Orfs X M.Bspp Adj Branch Tee offers a tee shape, with a Ch1 width of 27mm, a Ch2 width of 27mm, an L1 length of 32mm, and an L2 length of 47mm.

SKU: 6159-08-08-08

Supplier Part Number (MPN): 6159-08-08-08

Specifications

Brand
adapt-all
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Size 3
1/2 in
Connection Type
Male BSP, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Male ORFS
Connection Type 3
Male Adjustable BSPP
Dimension Standards
BS 5200, ISO 1179, ISO 8434-3, ISO 8434-6, SAE J1453
Finish
Zinc-Plated
Fitting Type
Tee
Material
Steel
Material Construction
Carbon Steel
Series
6159 Series
Thread Size
13/16-16 x 13/16-16 x 1/2-14

Product Questions & Answers (1)

Question by: Rusty B on Dec 10, 2025, 5:03 PM
got a line splitting off to a BSPP port on some imported equipment and need to keep two ORFS connections in the run, this tee gonna work for that kind of setup?
Answer by: Customer Support on Dec 12, 2025, 3:52 PM
That's exactly the kind of job this fitting handles. Two of the three ports are Male ORFS at 13/16-16 UN, both 1/2" size, so they'll tie into standard ORFS lines on either side of the run. The third port is Male BSPP at G 1/2-14, also 1/2", which is the common thread spec on a lot of European and Asian-made equipment. Steel construction, tee configuration. Pretty straightforward fit for what you're describing.
