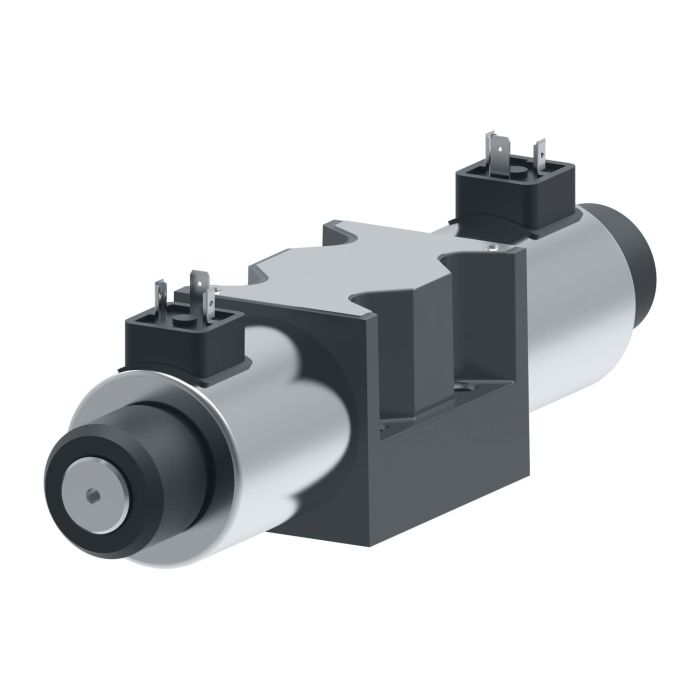

VICKERS DG4V 5 6CJ MU H6 20

Description & Features

Designed for three- or four-way directional control in demanding industrial hydraulic circuits, the Vickers DG4V-5 6CJ MU H6 20 is a single-stage directional control valve rated for flow up to 120 litres per minute. With a solenoid wattage of 38W and Buna-N seals, it is well suited to continuous-duty environments where consistent valve response and fluid compatibility are priorities.

Mounting follows industry-standard subplate patterns, simplifying integration into existing machine configurations. Typical applications span machine tools, presses, die casting and foundry equipment, marine and offshore systems, primary metals processing, turbine control, and test and simulation rigs, reflecting the valve's broad suitability across industrial sectors.

SKU: 616780

Supplier Part Number (MPN): 829AN00100A

Specifications

Actuator Type Solenoid	Design 22 Series	Dimensions 12.28 in L x 2.76 in W x 4.45 in H	Enclosure Type IP65	Energy Time 45 to 120 ms	Flow Rate 32 gpm	Fluid Cleanliness 19/17/14 um	Indicator Light Without Indicator Light	Manual Override Plain	Media Petroleum Oil	Number of Ports/Ways 4-Port	Number of Stages 1	Performance High	Power Rating 38 W	Pressure Rating 4500 psi	Seal Material FKM	Series DG4V-5 22 Series	Spool Position Monitor Without Spool Position Monitor	Spool Type Spool 6	Spring Arrangement Spring Centered	Surge Suppressor Damper Without Surge Suppressor Damper	Tank Port Rating 3000 psi	Temperature Rating -4 to 158 deg F	Valve Mount Type Subplate/Manifold	Voltage Rating 24 VDC

Product Questions & Answers (1)

Question by: Curt R on Mar 30, 2026, 3:07 PM

What size subplate does this bad boy need?

Answer by: Customer Support on Apr 1, 2026, 1:11 PM

Industry-standard subplates will fit this Vickers DG4V-5 valve, making it pretty simple to swap into existing setups.
