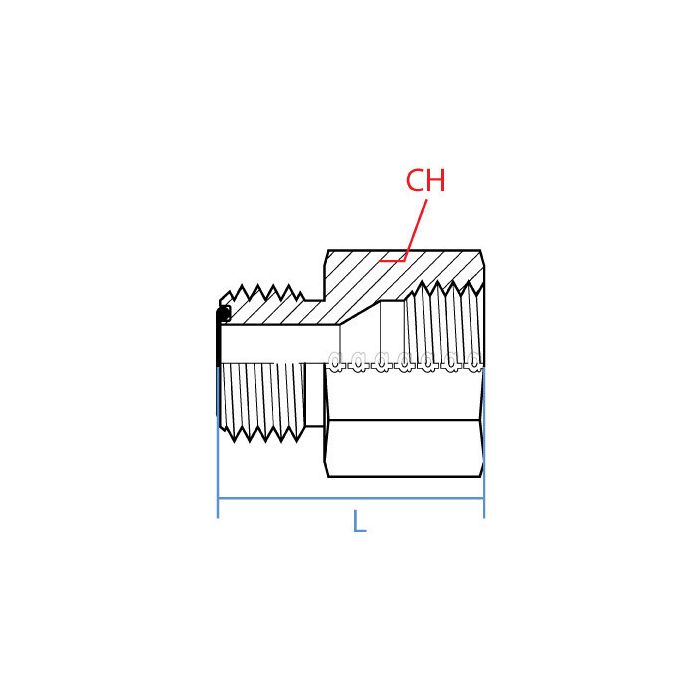

main product photo

Male Orfs X Female Jis

Ask A Question

Description & Features

This steel Adaptall fitting is a straight male ORFS (O-Ring Face Seal) to female JIS (Japanese Industrial Standard) adapter. The ORFS side features a 1/2" size with a 13/16 - 16 UN callout, ensuring a secure, leak-resistant connection. The JIS side also features a 1/2" size with a G 1/2 - 14 callout.

This Male Orfs X Female Jis adapter has a 27mm wrench flat width, and an overall length of 32.7mm.

SKU: 6220-08-08

Supplier Part Number (MPN): 6220-08-08

Specifications

Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Female JIS, Male ORFS
Connection Type 1
Male ORFS
Connection Type 2
Female JIS
Dimension Standards
ISO 8434-3, JIS B 0202, SAE J1453
Dimensions
33.5 mm L
Finish
Zinc-Plated
Fitting Type
Adapter
Hex Size
27 mm
Material
Steel
Material Construction
Carbon Steel
Series
6220 Series
Thread Size
13/16-16 x 13/16-16 x 1/2-14

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Clint M on Mar 22, 2026, 1:08 PM
Got a machine running JIS fittings and need to tie in some ORFS lines, this straight adapter handle that kind of crossover?
Answer by: Customer Support on Mar 24, 2026, 9:26 AM
Yeah, that's exactly what this fitting is built for. One end is male ORFS with a 13/16-16 UN thread, and the other is female JIS at G 1/2-14. Both sides are 1/2" size, so you're connecting two half-inch lines from different standards without needing extra adapters or fabricated solutions. Steel construction, straight configuration, 32.7mm overall length. Pretty clean swap if the rest of your hydraulic connections lines up.
Question by: Dwayne G on Aug 4, 2025, 6:38 PM
trying to match up a hose end, is this the straight adapter that goes from 1/2 ORFS male over to a 1/2 JIS female?
Answer by: Customer Support on Aug 6, 2025, 11:54 AM
You’ve got it. It’s a straight steel adapter with a 1/2 inch male ORFS on one side (13/16 - 16 UN callout) and a 1/2 inch female JIS on the other (G 1/2 - 14 callout).
Question by: Tammy D on Jul 26, 2025, 1:50 PM
Will this here fitting hold up alright outside?
Answer by: Customer Support on Jul 28, 2025, 1:13 PM
This steel Adaptall fitting should perform well in many outdoor environments, but keep in mind that steel is susceptible to rust over time, especially in humid or coastal areas.
