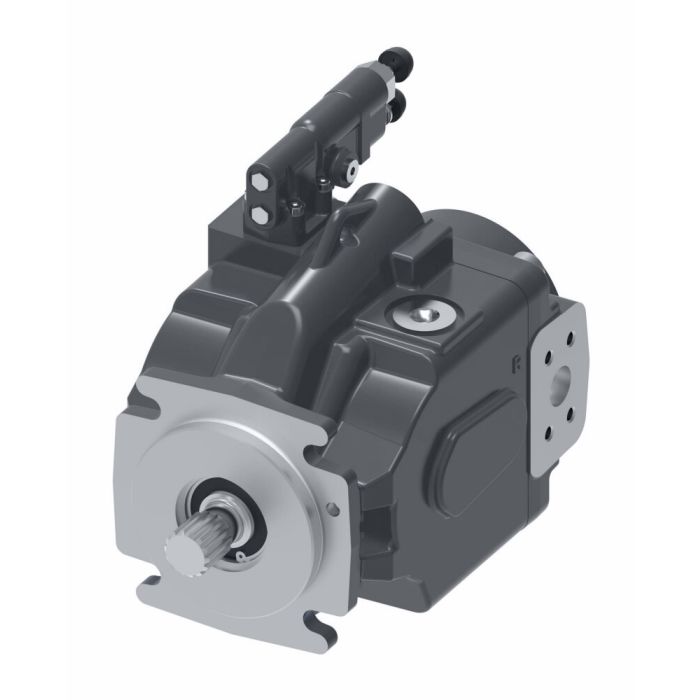

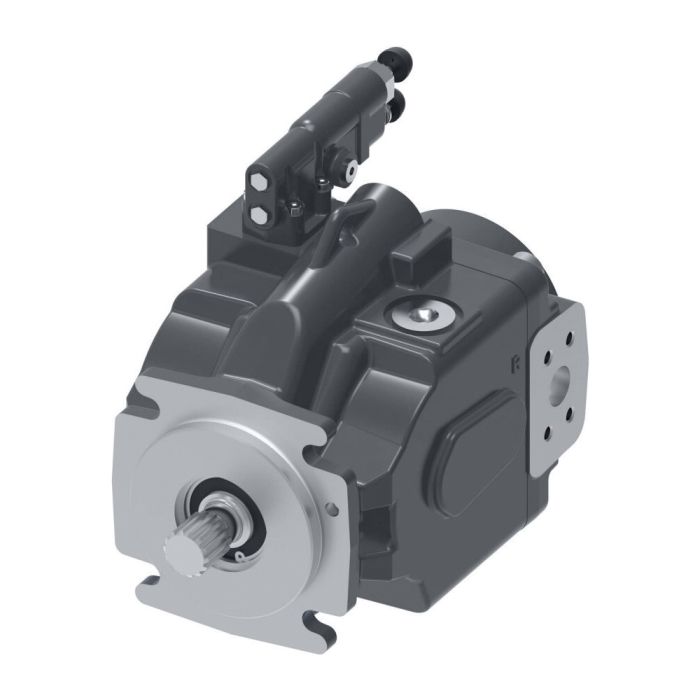

DANFOSS / EATON ADY098R05AB10A2820000A2AG100CD0A

Ask A Question

Description & Features

The Eaton Char-Lynn DANFOSS / EATON ADY098R05AB10A2820000A2AG100CD0A is an open circuit piston pump from the X20 620 series. With advanced control options, this pump is designed to increase efficiency and offer the fastest response and recovery times available.

This piston pump is suitable for applications such as wheel loaders, motor graders, concrete equipment, backhoe loaders, vacuum trucks, telehandlers, refuse trucks, rail maintenance, forestry harvesters, and drill rigs. It has a product width of 7.82 inches.

SKU: 622AK00089A

Supplier Part Number (MPN): 622AK00089A

Specifications

Brand
Danfoss
Control Type
Pressure and Flow Compensator
Design Code
A
Dimensions
13.78 in L x 7.82 in W x 10.63 in H
Drive Shaft Type
Keyed
Housing Color
Blue
Housing Material
Iron
Inlet Type
Flanged
Mounting Type
4-Bolt Flanged
Outlet Type
Flanged
Piston Material
Bronze
Rotation Direction
Clockwise
Seal Material
FKM
Series
X20 620 Series

Product Questions & Answers (1)

Question by: Stan B on Dec 4, 2025, 1:41 PM
what all kind of machines is this pump meant to run on? got a telehandler and a backhoe both needin work and tryin to figure out if one pump could cover both
Answer by: Customer Support on Dec 6, 2025, 8:05 AM
Both of those machines are right in the wheelhouse for this pump. The ADY098R05AB10A2820000A2AG100CD0A is built for mobile equipment including telehandlers and backhoe loaders, so it fits the application on either machine. Whether it physically fits your exact unit comes down to your existing mounting and port configuration, but from an application standpoint you're looking at a pump that was spec'd for exactly that kind of work.
