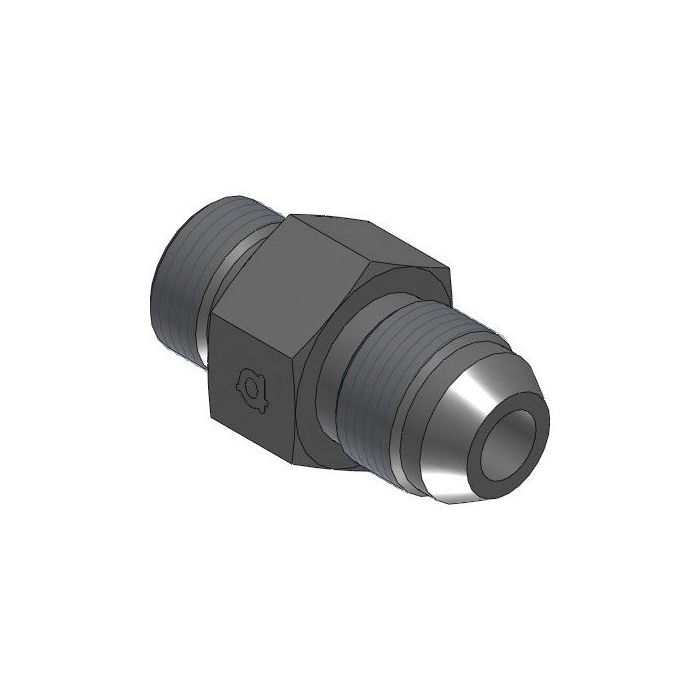

Male Orfs X Male Komatsu

Description & Features

Constructed from steel in a straight configuration, this adapter connects a 1/2" Male ORFS fitting (13/16-16 UN thread) to a Male Komatsu port (M22 x 1.5 thread). The Male Orfs X Male Komatsu is a practical solution for bridging these two distinct thread standards in hydraulic circuits where Komatsu-ported equipment needs to interface with ORFS-terminated lines.

At 51.7mm in length with a 27mm CH width, the compact straight body suits installations where space and alignment are a consideration. Manufactured by Adaptall, the fitting is designed to the tolerances expected for hydraulic adapter applications in mobile and industrial equipment.

SKU: 6237-08-22

Supplier Part Number (MPN): 6237-08-22

Specifications

Brand adapt-all	Connection Size 1 1/2 in	Connection Size 2 22 mm	Connection Type Male Komatsu, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Komatsu	Dimension Standards ISO 261, ISO 8434-3, SAE J1453	Dimensions 52 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 27 mm	Material Steel	Material Construction Carbon Steel	Series 6237 Series	Thread Size 13/16-16 x M22x1.5

Product Questions & Answers (1)

Question by: Patty F on Oct 8, 2025, 7:08 AM

Got a Komatsu-ported machine and need to tie into an ORFS line. This the right piece for that?

Answer by: Customer Support on Oct 9, 2025, 7:27 PM

That's what this adapter is built for. One end is a 1/2" Male ORFS with a 13/16-16 UN thread, and the other is a Male Komatsu at M22 x 1.5. Both ends are male, so you'd be threading each side directly into its corresponding female port or fitting. Steel construction, straight body, 51.7mm long with a 27mm wrench flat. Adaptall makes it, so the tolerances are consistent with what you'd expect for hydraulic adapter work on mobile equipment.
