Male Orfs X Male Komatsu

Description & Features

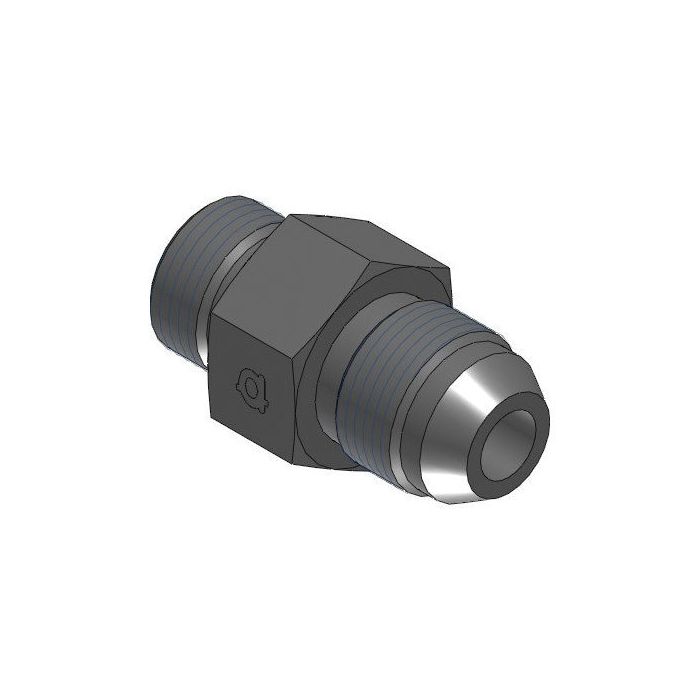

A straight steel adapter connecting a 1-7/16-12 UN male ORFS thread on one end to an M33 x 1.5 male Komatsu thread on the other, this Male Orfs X Male Komatsu fitting is manufactured by Adaptall for reliable performance in hydraulic systems requiring cross-standard thread compatibility. The straight profile keeps routing straightforward where space allows.

Built from steel with a 41mm wrench width and an overall length of 61.9mm, this adapter is well-suited for mobile equipment and heavy machinery applications where Komatsu-pattern ports need to interface with ORFS-terminated lines. The 1-inch ORFS side and 33mm Komatsu side are both male, making it a direct male-to-male transition fitting.

SKU: 6237-16-33

Supplier Part Number (MPN): 6237-16-33

Specifications

Brand adapt-all	Connection Size 1 1 in	Connection Type Male Komatsu, Male ORFS	Connection Type 1 Male ORFS	Connection Type 2 Male Komatsu	Dimension Standards ISO 261, ISO 8434-3, SAE J1453	Dimensions 63 mm L	Finish Zinc-Plated	Fitting Type Adapter	Hex Size 41 mm	Material Steel	Material Construction Carbon Steel	Series 6237 Series	Thread Size 1-7/16-12 x M33x1.5

Product Questions & Answers (3)

Question by: Phil C on Sep 24, 2025, 8:57 AM

Will this fitting hold up okay on a piece of earthmoving equipment?

Answer by: Customer Support on Sep 26, 2025, 6:55 AM

Built from steel and manufactured by Adaptall, this adapter should provide reliable performance in heavy machinery applications.

Question by: Jean C on Jul 31, 2025, 1:46 PM

Got a Komatsu port on a piece of heavy equipment that needs to tie into an ORFS line, this the right adapter to make that happen?

Answer by: Customer Support on Aug 2, 2025, 9:21 AM

That's what this fitting is built for. One end is a 1-7/16-12 UN male ORFS thread, the other is an M33 x 1.5 male Komatsu thread, so it bridges those two standards in a single straight adapter. Both sides are male, which means you'll need female counterparts on whatever you're connecting to. The straight profile keeps things clean when you've got the clearance to work with.

Question by: Jimmy C on Nov 10, 2025, 1:42 PM

got a komatsu port that’s M33 x 1.5 and my hose end is 1 inch ORFS, is this the right adapter?

Answer by: Customer Support on Nov 12, 2025, 6:55 AM

For that exact thread mix, it matches up as a straight male to male adapter with M33 x 1.5 male on one side (Komatsu) and 1-7/16-12 UN male on the other side (1 inch ORFS).
