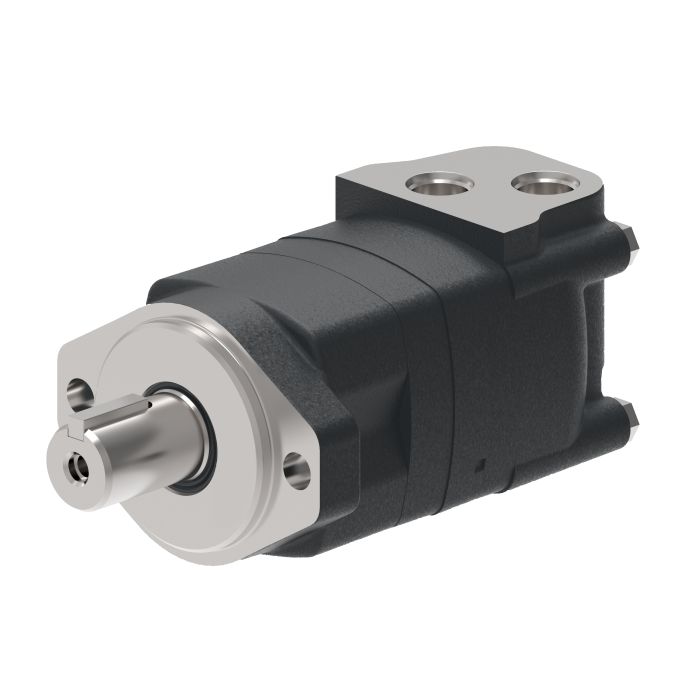

DANFOSS / EATON-XL2 Series, Disc Valve

Ask A Question

Description & Features

Designed for demanding low-speed, high-torque applications, the Danfoss / Eaton Xcel XL2 Series Disc Valve is a cast iron Geroler motor well-suited to skid steer attachments and swing motor duties. The disc valve design delivers consistent, efficient performance across speed ranges, while the Geroler mechanism supports strong torque output, rated at 235 Nm, even at reduced speeds.

Built under the Char-Lynn brand lineage, this motor handles flow rates up to 75 litres per minute and incorporates an advanced feature set within a practical, accessible package. The same-speed disc valve contributes to reliable rotational consistency, making it a dependable choice for mobile hydraulic equipment where torque and controllability matter.

SKU: 629AG00001A

Supplier Part Number (MPN): 629AG00001A

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
B
Dimensions
6.93 in L x 5.17 in W x 4.28 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
80
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
XL2 Series
Shaft Type
Straight Square Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Roger R on Aug 24, 2025, 6:37 AM
Reckon this'll work for a skid steer attachment, like a brush hog?
Answer by: Customer Support on Aug 25, 2025, 10:27 AM
Designed for demanding low-speed, high-torque applications, this Danfoss/Eaton XL2 series disc valve should do the trick for skid steer attachments. It is also well-suited for swing motor duties.
