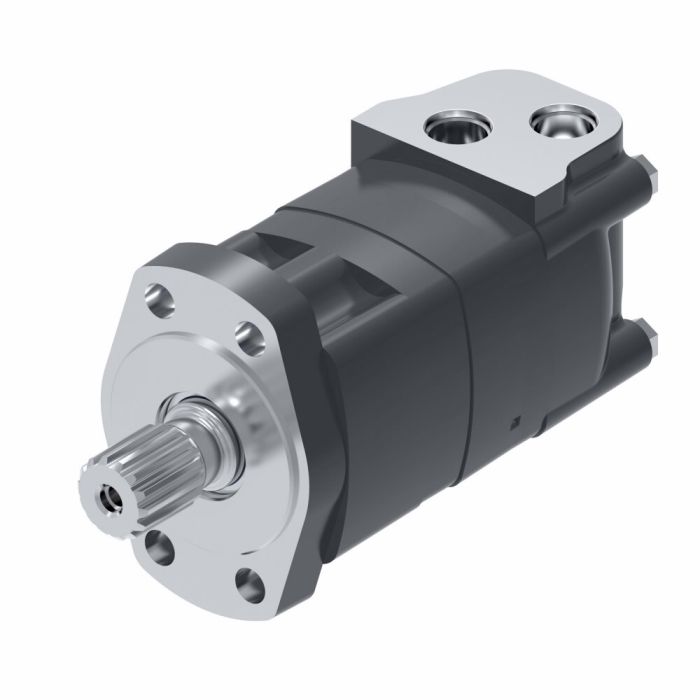

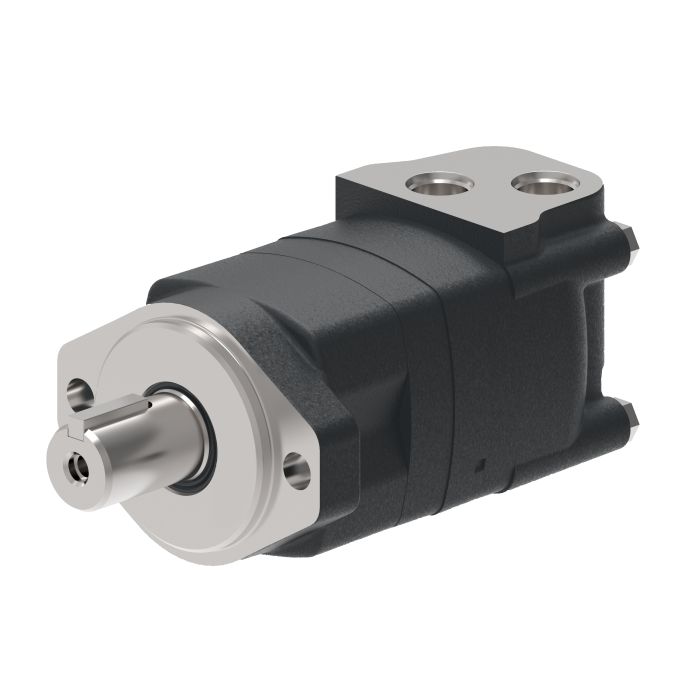

main product photo

DANFOSS / EATON-XL2 Series, Disc Valve

Ask A Question

Description & Features

Designed for low-speed, high-torque hydraulic applications, the Danfoss / Eaton XL2 Series Disc Valve motor is part of the Char-Lynn Xcel line of Geroler motors. It delivers a rated torque of 385 Nm and supports flow rates up to 75 litres per minute, making it well suited to demanding mobile and industrial hydraulic circuits.

The motor uses an efficient same-speed disc valve mechanism, which contributes to consistent performance across its operating range. Higher torque output at low speeds is a notable characteristic of this design, supporting applications where controlled, high-force actuation is required. The Xcel series combines advanced engineering with a practical, accessible design.

SKU: 629AG00003A

Supplier Part Number (MPN): 629AG00003A

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
B
Dimensions
7.36 in L x 4.28 in W x 4.28 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
130
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
XL2 Series
Shaft Type
Straight Square Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Neil J on Oct 19, 2025, 9:59 PM
What kind of hydraulic jobs is this XL2 disc valve motor really good for?
Answer by: Customer Support on Oct 21, 2025, 6:51 AM
Designed for hydraulic systems needing high torque at low speeds, this Danfoss/Eaton motor excels in applications where controlled force is key. Think heavy-duty mobile equipment or industrial machinery needing precise movement.
