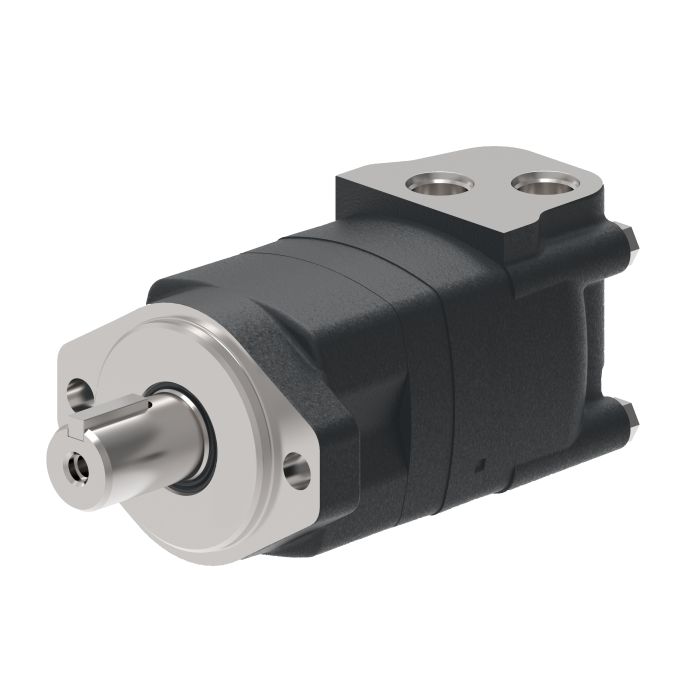

DANFOSS / EATON-XL2 Series, Disc Valve

Ask A Question

Description & Features

The DANFOSS / EATON-XL2 Series Disc Valve, known for its efficient "same speed" disc valve design, offers enhanced performance with higher torque at low speeds. With a torque rating of 455 newton meters and a flow rate of 75 liters per minute, this valve is ideal for applications requiring low-speed gerotor/geroler functionality. Its advanced, feature-rich design ensures optimal operation at an affordable price point, making it a reliable choice for industrial hydraulic systems.

Measuring 4.28 inches in width, the valve is part of the Char-Lynn brand under the Xcel sub-brand, ensuring compatibility and reliability. Built to withstand demanding conditions, this valve is a testament to quality and engineering excellence, suitable for a range of industrial applications.

SKU: 629AG00077A

Supplier Part Number (MPN): 629AG00077A

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
B
Dimensions
7.36 in L x 4.28 in W x 4.28 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
160
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
XL2 Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Cody D on Mar 18, 2026, 12:38 PM
Would this valve be alright for a hydraulic system needing good torque at slower speeds?
Answer by: Customer Support on Mar 20, 2026, 6:41 AM
It’s designed specifically for that. The XL2 series disc valve is known for providing higher torque when operating at low speeds.
