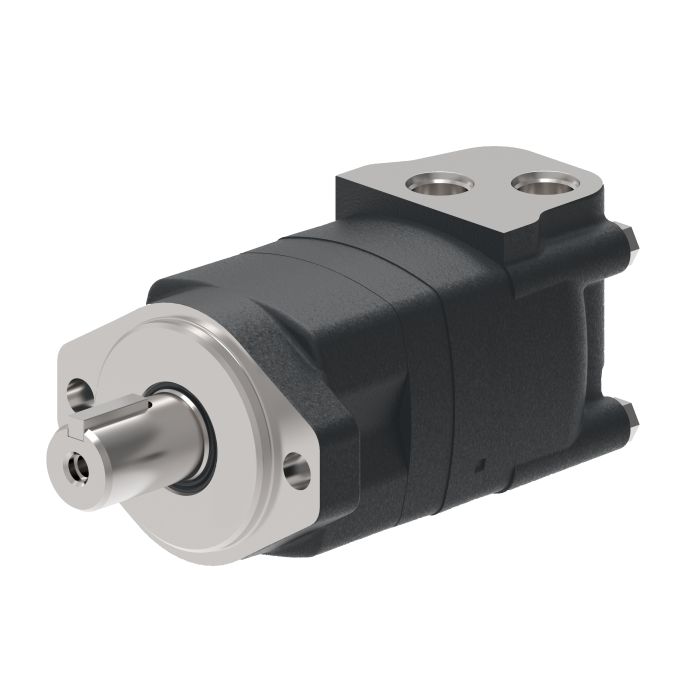

DANFOSS / EATON-XL2 Series, Disc Valve

Ask A Question

Description & Features

This DANFOSS / EATON-XL2 Series disc valve excels in applications such as skid steer attachments and swing motors, delivering higher torque at low speeds. Its efficient "same speed" disc valve design and advanced features offer reliable performance at an affordable price.

Constructed from durable cast iron, this Xcel sub-brand geroler motor achieves a torque rating of 845 newton metres with a flow rate of 75 litres per minute.

SKU: 629AG00082A

Supplier Part Number (MPN): 629AG00082A

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
B
Dimensions
9.74 in L x 5.17 in W x 4.28 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
490
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
XL2 Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Ricky R on May 23, 2025, 4:46 PM
Reckon this would work on my skid steer's attachment motor?
Answer by: Customer Support on May 25, 2025, 6:55 AM
Absolutely, this Danfoss/Eaton XL2 series disc valve is designed for applications like skid steer attachments, providing the necessary torque at lower speeds.
