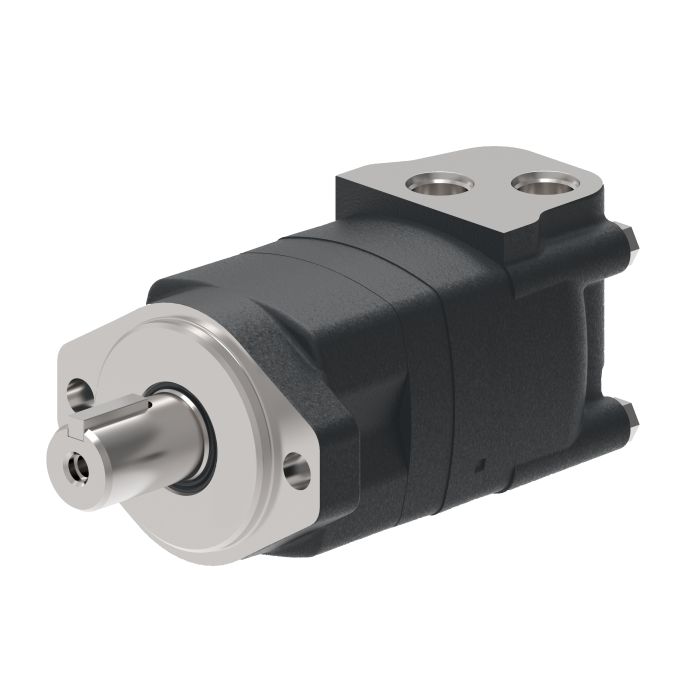

DANFOSS / EATON-XL2 Series, Disc Valve

Ask A Question

Description & Features

This DANFOSS / EATON-XL2 Series disc valve features an efficient "same speed" disc valve design, delivering higher torque at low speeds. Its advanced design offers feature-rich performance at an affordable price point.

Constructed from durable cast iron, this geroler is suitable for use in skid steer attachments and swing motor applications. This hydraulic component offers a flow rate of 75 gallons per minute and a torque rating of 235 newton metres.

SKU: 629AG00151A

Supplier Part Number (MPN): 629AG00151A

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
B
Dimensions
6.93 in L x 5.17 in W x 4.3 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
80
Housing Material
Iron
Mounting Type
2-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
XL2 Series
Shaft Size
1 in Dia
Shaft Type
Straight Square Keyed
Valve Type
Disc

Product Questions & Answers (1)

Question by: Freddie W on Jul 5, 2025, 11:26 AM
Reckon this would be alright for a skid steer attachment?
Answer by: Customer Support on Jul 6, 2025, 5:03 PM
This Danfoss/Eaton XL2 series disc valve is well-suited for skid steer attachments. It's also good for swing motor applications, according to the description.
