main product photo

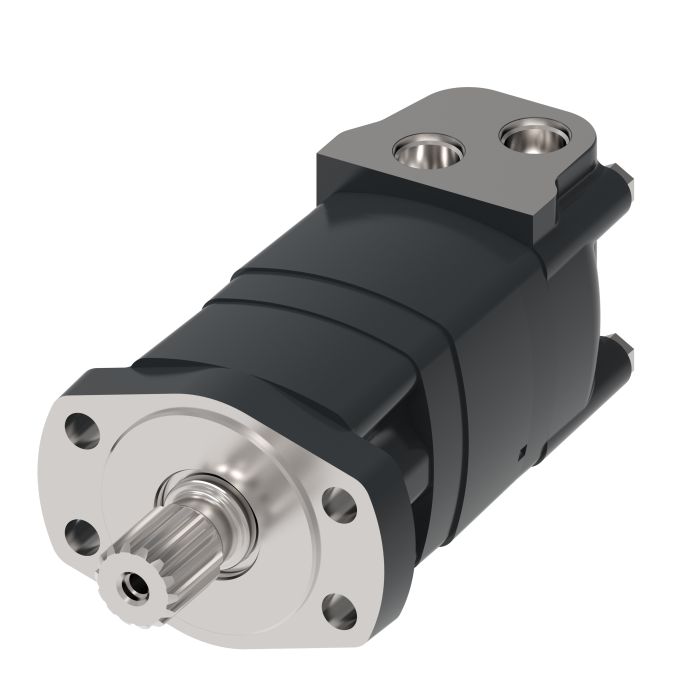

DANFOSS / EATON-XL2 Series, Disc Valve

Ask A Question

Description & Features

This DANFOSS / EATON-XL2 Series disc valve is designed for optimal performance in demanding hydraulic applications. Its efficient "same speed" disc valve ensures smooth and reliable operation. The durable cast iron construction withstands rigorous use in industrial environments.

The DANFOSS / EATON-XL2 Series, Disc Valve, is engineered with an advanced, feature-rich design at an affordable price, delivering higher torque at low speeds. With a torque rating of 540 newton metres and a flow rate of 75 gallons per minute, this disc valve excels in applications such as skid steer attachments and swing motors.

SKU: 629AG00197A

Supplier Part Number (MPN): 629AG00197A

Specifications

Brand
Danfoss
Bearing Type
Tapered Roller
Check Valve Function
With Check Valve Function
Color
Black
Design Code
B
Dimensions
7.63 in L x 5.34 in W x 4.3 in H
Drain Port Dimension
7/16-20 UNF-2B SAE O-ring
Frame Size
195
Housing Material
Iron
Mounting Type
4-Bolt Flanged
Orbital Gearwheel Set
Standard
Orbital Gearwheel Set Type
Geroler
Painted
With Painted
Port Location
Side, Staggered
Port Type
UNF-2B, SAE O-ring
Seal Material
NBR
Series
XL2 Series
Shaft Type
Splined
Valve Type
Disc

Product Questions & Answers (1)

Question by: Denise S on Aug 7, 2025, 11:21 AM
Reckon this valve could handle the hydraulics on my skid steer's attachments?
Answer by: Customer Support on Aug 8, 2025, 2:48 PM
This Danfoss/Eaton XL2 disc valve is well-suited for skid steer attachments, among other applications.
