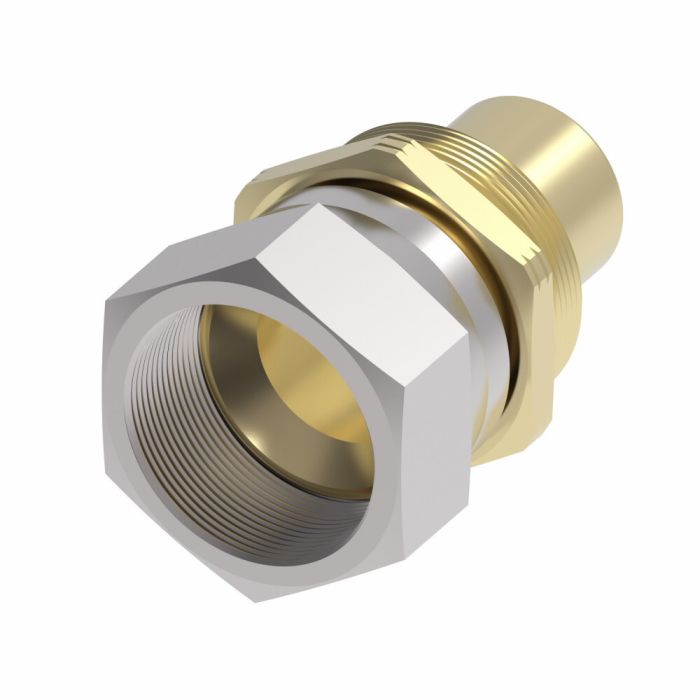

Aeroquip Reusable FTGS - Code

Ask A Question

Description & Features

A reusable hose fitting in dash size -20, the Aeroquip Reusable FTGS - Code is a nipple assembly constructed from brass and carbon steel, combining corrosion resistance with mechanical durability suited to hydraulic hose assemblies. The female SAE 37 end pairs with a male line/hose/tube end, making this fitting compatible with a range of hose and tube connections commonly found in mobile and industrial hydraulic circuits.

As a reusable fitting, it can be disassembled and reinstalled without specialized tooling, which reduces replacement costs during maintenance or reconfiguration. Fluid compatibility documentation is available from the manufacturer and should be referenced when selecting this fitting for specific media or operating environments.

SKU: 63-185535-20

Supplier Part Number (MPN): 63-185535-20

Specifications

a Dimensions
2.94 in
Compatible Hose ID
1-1/4 in
Connection Size 1
1-1/4 in
Connection Size 2
1-1/4 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
2 in
Dimension Standards
SAE J514
Dimensions
1.06 in ID x 2.94 in L
End Connection Torque
127 to 133 lb-ft
End Gender 1
Female
End Gender 2
Male
End Size 1
20
End Size 2
20
Fitting Type
Straight Fitting
For Use With
2808 Series Hoses
Hex Size
2 in
Hose Dash Size
20
Inside Diameter
1-1/16 in
Material
Brass
Material Construction
Brass
Series
63-185535 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/8-12
Thread Type
UN

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Roger H on May 20, 2025, 5:14 PM
What size is this Aeroquip fitting? Just want to make sure it'll fit my -20 hose.
Answer by: Customer Support on May 22, 2025, 7:05 AM
The dash size for this fitting is -20, so it should be a direct fit for your -20 hose.
