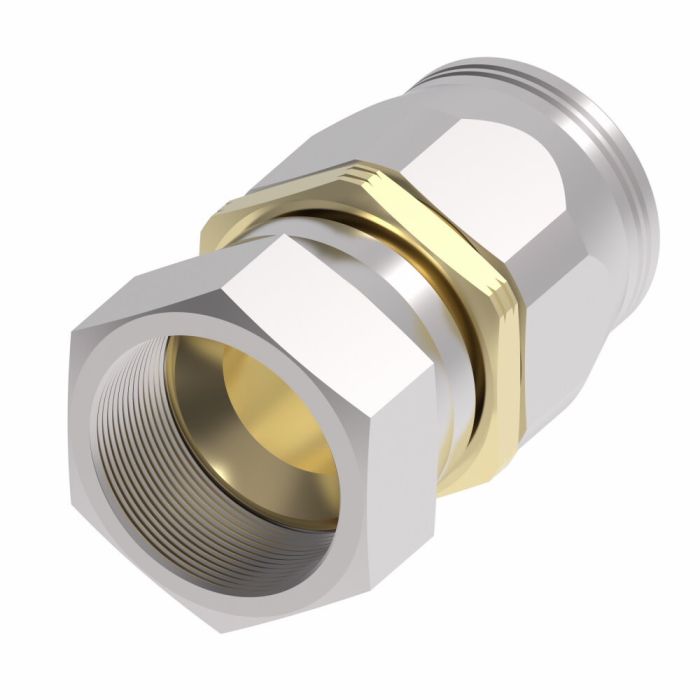

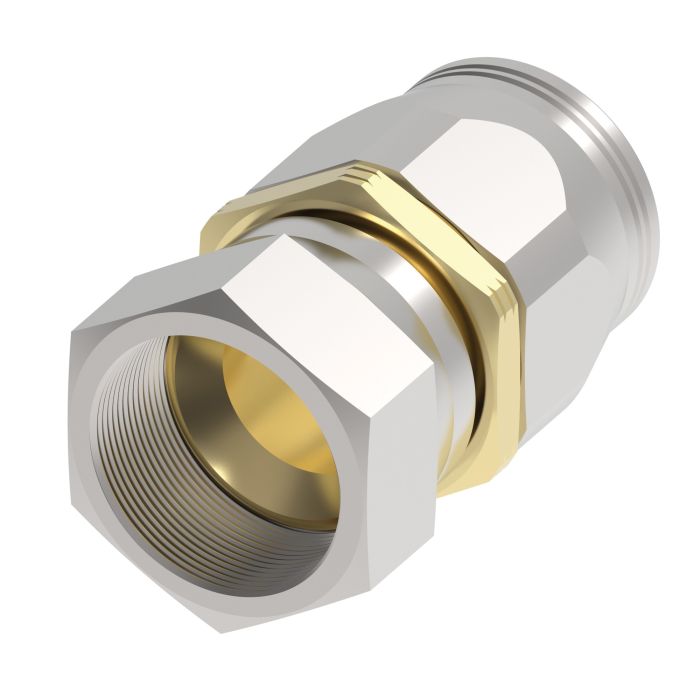

Aeroquip SUPR GEM FIT 12 F JIC

Ask A Question

Description & Features

Designed for reliability and efficiency, the Aeroquip SUPR GEM FIT 12 F JIC is a versatile fitting assembly that suits a wide variety of applications. Its durable construction, featuring brass and carbon steel, ensures long-lasting performance in demanding industrial environments. The female SAE 37-degree swivel end provides a secure connection to hoses, tubes, or lines, reducing assembly time and enhancing productivity.

This fitting features a -12 hose dash size and a 1.25-inch hex size, making it compatible with numerous hydraulic systems. Known for its dependability, the Aeroquip brand delivers high-quality components that meet industry standards, ensuring seamless integration into your existing systems. With a package weight of 1.49 lb, this compact fitting is easy to handle and install.

SKU: 63-190535-12

Supplier Part Number (MPN): 63-190535-12

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.46 in
Compatible Hose ID
3/4 in
Connection Size 1
3/4 in
Connection Size 2
1-1/16 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.7 in
Dimension Standards
SAE J514
Dimensions
2.46 in L
End Connection Torque
79 to 87 lb-ft
End Gender 1
Female
End Size 1
12
Finish
Zinc-Plated
Fitting Type
Coupler
For Use With
2807 and FC465 Series Hoses
Hex Size
1-1/4
Hose Dash Size
12
Inside Diameter
0.56 in
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
3000 psi
Series
63-190535 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-12
Thread Type
UN

Product Questions & Answers (1)

Question by: Ricky A on Jan 11, 2026, 6:12 PM
So this is a female fitting, right? Just making sure before I order.
Answer by: Customer Support on Jan 13, 2026, 10:48 AM
Correct, this Aeroquip fitting has a female SAE 37-degree swivel end.
