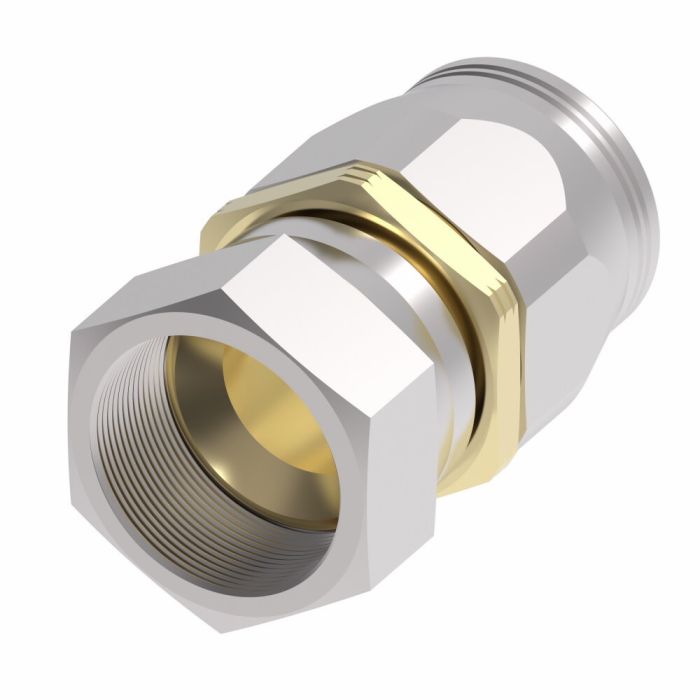

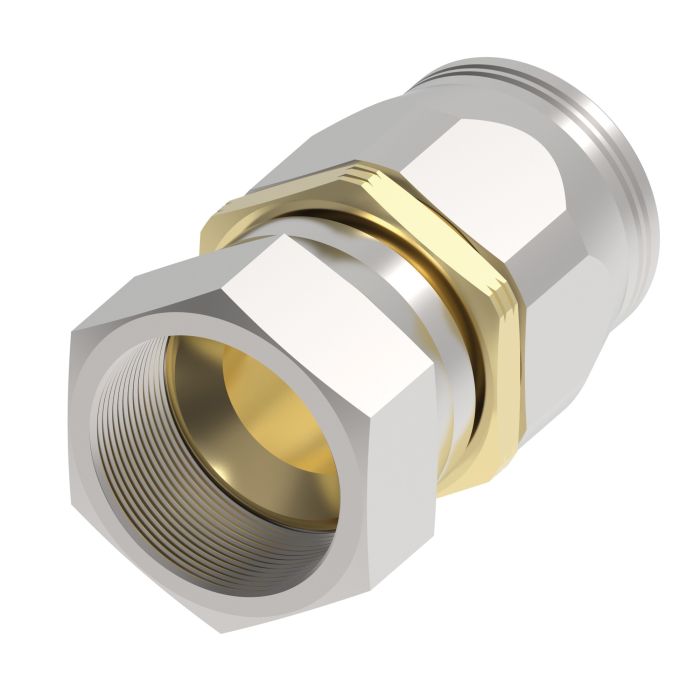

main product photo

Aeroquip SUPR GEM FIT 16 F JIC

Ask A Question

Description & Features

The Aeroquip SUPR GEM FIT 16 F JIC fitting assembly offers durable and dependable performance across a wide range of applications. This fitting features a female SAE 37-degree JIC swivel end, along with a line/hose/tube connection.

Constructed from brass and carbon steel, this Aeroquip fitting ensures reliability. With a 1.5-inch hex size, it provides a secure grip during installation. This fitting is designed for a hose dash size of -16, which helps cut assembly times and boost production.

SKU: 63-190535-16

Supplier Part Number (MPN): 63-190535-16

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.66 in
Compatible Hose ID
1 in
Compatible Tube OD
1 in
Connection Size 1
1 in
Connection Size 2
1-5/16 in
Connection Type
Female JIC Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 37 deg JIC Swivel
Construction Style
Reusable
Cut-Off Factor
1.9 in
Dimension Standards
SAE J514
Dimensions
2.66 in L
End Connection Torque
108 to 113 lb-ft
End Gender 1
Female
End Size 1
16
Finish
Zinc-Plated
Fitting Type
Coupler
For Use With
2807 and FC465 Series Hoses
Hex Size
1-1/2 in
Hose Dash Size
16
Inside Diameter
0.83 in
Material
Brass
Material Construction
Brass
Maximum Operating Pressure
3000 psi
Series
63-190535 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-5/16-12
Thread Type
UN
Tube Outside Diameter 1
1 in

Product Questions & Answers (1)

Question by: Neal W on Feb 8, 2026, 6:59 PM
Reckon this fitting will hold up okay in a hydraulic system that sees pretty regular use?
Answer by: Customer Support on Feb 10, 2026, 4:16 PM
Constructed from brass and carbon steel, this Aeroquip fitting is designed for durability and dependable performance across a wide range of applications.
