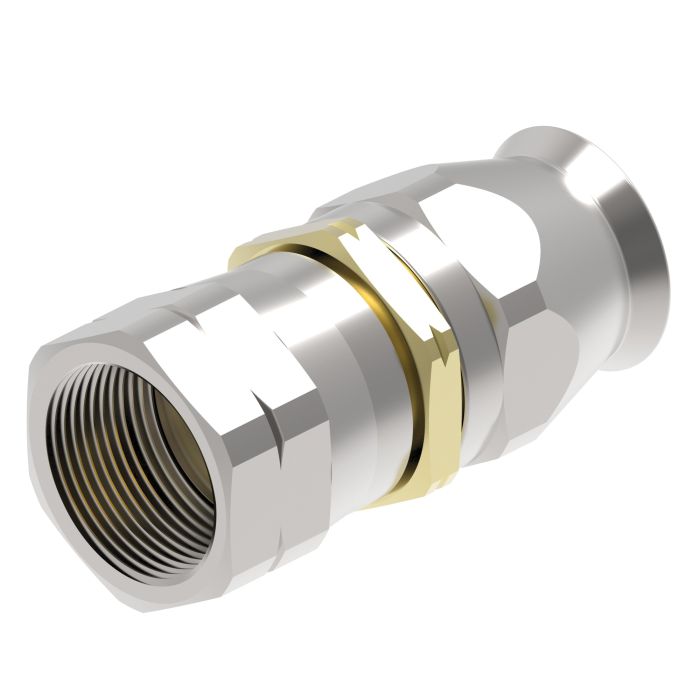

main product photo

Aeroquip SUPER GEM FIT 5 F SAE

Ask A Question

Description & Features

The Aeroquip SUPER GEM FIT 5 F SAE fitting assembly offers a durable and dependable solution for a wide range of applications. Featuring a female end with a 0.5" SAE 45-degree connection, this fitting ensures secure and leak-free performance.

Constructed from brass and carbon steel, this Aeroquip fitting assembly is designed for use with -5 hose dash size and has a 0.62" hex size.

SKU: 63-190990-5

Supplier Part Number (MPN): 63-190990-5

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
1.68 in
Compatible Hose ID
0.31 in
Connection Size 1
5/16 in
Connection Size 2
1/2 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Swivel
Construction Style
Reusable
Cut-Off Factor
1.17 in
Dimensions
1.68 in L
End Connection Torque
14 to 15 lb-ft
End Gender 1
Female
End Size 1
1/2 in
Finish
Zinc Clear Trivalent Chromate-Plated
Fitting Type
Hose Fitting
For Use With
2807, FC465 and S-TW Series PTFE Hoses
Hex Size
5/8 in
Hose Dash Size
05
Inside Diameter
0.23 in
Material
Brass
Material Construction
Carbon Steel
nmfc
50
Segment Code
C
Series
190990 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20
Thread Type
UNF

Product Questions & Answers (1)

Question by: Peggy G on Jun 28, 2025, 6:14 AM
Hey, so will this fitting work with just any ol' -5 hose?
Answer by: Customer Support on Jun 30, 2025, 8:23 AM
It's designed for use with a -5 hose dash size specifically.
