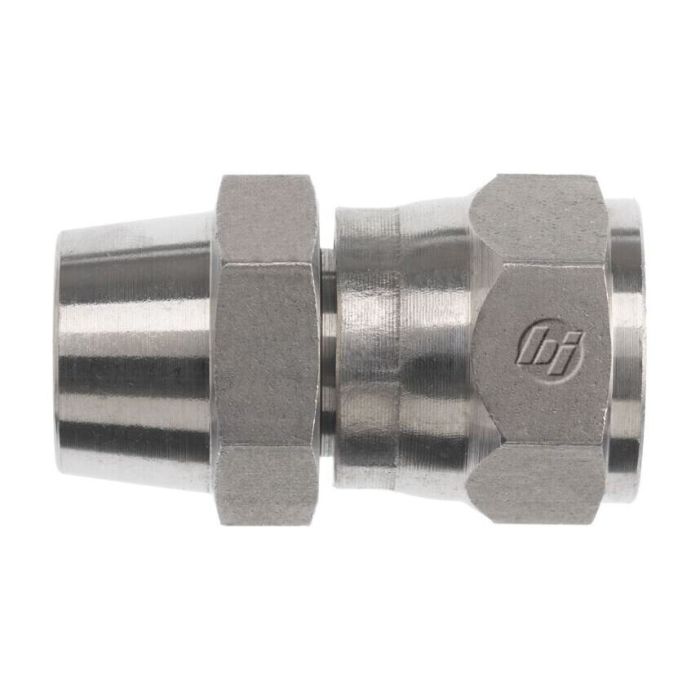

-06 FJS BUTTWELD 316SS

Description & Features

This -06 FJS BUTTWELD 316SS fitting features a 9/16-18 SAE J514 female JIC swivel 37-degree flare end for secure connections. Constructed from 316 stainless steel, this straight fitting is suitable for demanding hydraulic applications.

It includes a buttweld end with a 3/8" tube OD. The Brennan Series 6316 fitting has a 0.688" C hex and an overall length of 1.470".

SKU: 6316-06-SS

Supplier Part Number (MPN): 6316-06-SS

Alternate Part Numbers: FJIC-SS-3/8

Specifications

Burst Ratio 4:1	Connection Size 1 3/8 in	Connection Size 2 3/8 in	Connection Type Butt Weld, Female JIC Swivel	Connection Type 1 Female 37 deg JIC Flare Swivel	Connection Type 2 Butt Weld	Dimension Standards SAE J514	Dimensions 1.46 in L	Fitting Type Connector	Hex Size 11/16 in	Material Stainless Steel	Material Construction 316/316L Stainless Steel	Maximum Operating Pressure 5000 psi	Series 6316 Series	Thread Size 9/16-18

Product Questions & Answers (1)

Question by: Brent E on May 16, 2025, 7:33 AM

What size tube does this buttweld end fit?

Answer by: Customer Support on May 18, 2025, 6:09 AM

This fitting is made for a 3/8" outer diameter tube on the buttweld side.
