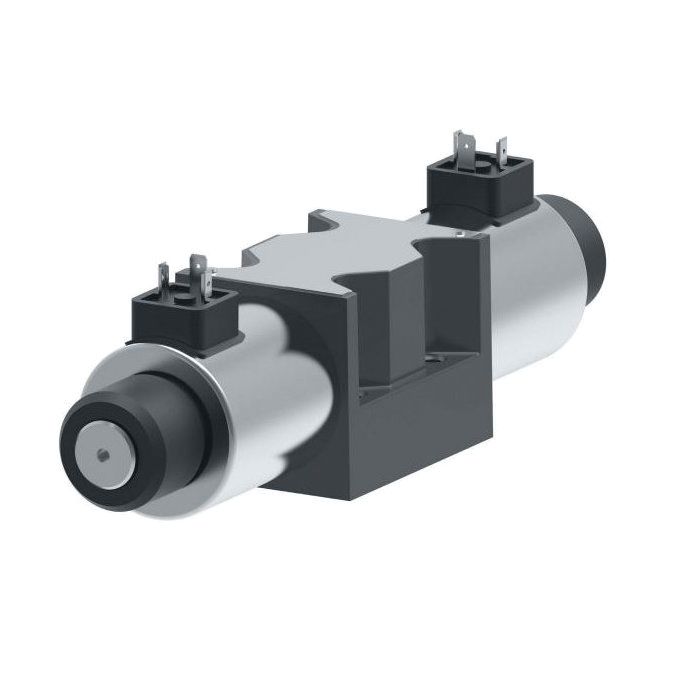

main product photo

VICKERS DG4V 5 3C M U A6 20

Ask A Question

Description & Features

Designed for three- and four-way directional control in demanding industrial circuits, the Vickers DG4V 5 3C M U A6 20 is a single-stage directional control valve rated for flow up to 120 litres per minute. With a solenoid wattage of 38W and Buna-N seals, it is well-suited for applications where reliable fluid direction control and long service life are required.

Mounting follows industry-standard surface patterns, simplifying integration into existing manifold arrangements. Applicable across a broad range of industrial sectors, including die casting and foundry, machine tool, marine and offshore, press, primary metal and paper, test equipment and simulation, and turbine control for wind, steam, and water installations, this valve covers a wide operational scope within a single platform.

SKU: 639380

Supplier Part Number (MPN): 639380

Specifications

Brand
Vickers by Danfoss
Actuator Type
Solenoid
Design
20 Series
Dimensions
9.68 in L x 2.8 in W x 4.53 in H
Indicator Light
Without Indicator Light
Manual Override
Plain
Media
Petroleum Oil
Number of Stages
1
Performance
High
Seal Material
FKM
Series
DG4V-5 20 Series
Spool Position Monitor
Without Spool Position Monitor
Spool Type
Spool 3
Spring Arrangement
Spring Centered
Surge Suppressor Damper
Without Surge Suppressor Damper
Valve Mount Type
Subplate/Manifold

Product Questions & Answers (1)

Question by: Hubert M on Sep 28, 2025, 8:29 PM
Will this here Vickers valve hold up okay in a machine shop environment with some heat and grime?
Answer by: Customer Support on Sep 30, 2025, 6:41 PM
Designed for demanding industrial circuits, the DG4V 5 3C M U A6 20 should perform reliably in a typical machine shop, as long as the temperature and contaminants are within normal industrial limits.
