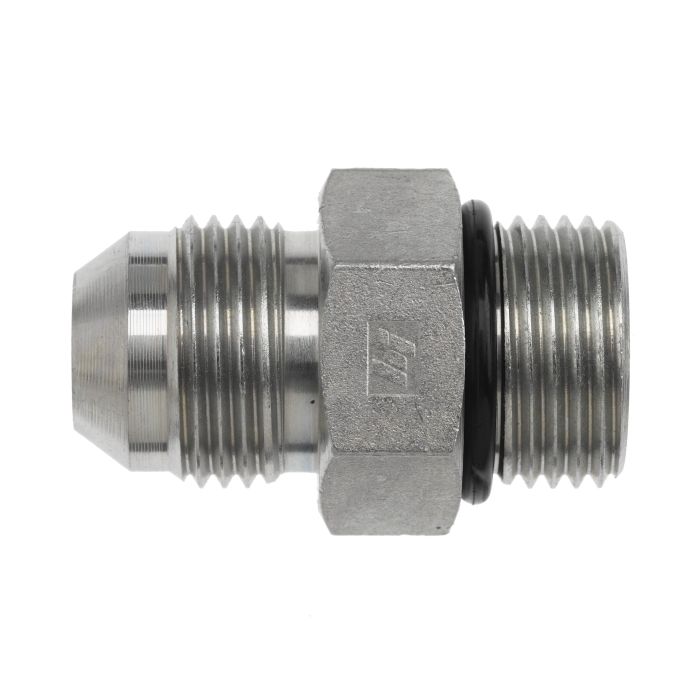

06MJ-06MORB STRAIGHT

Ask A Question

Description & Features

Designed for high-pressure applications this adapter is ideal for challenging scenarios. With a maximum dynamic pressure of 6 000 psi and a robust NBR O-ring seal it ensures reliable performance.

This straight steel adapter is crafted by Brennan Industries Inc. known for their durable products. Measuring an overall length of 1.300 mm the adapter features both male JIC SAE 37-degree flare and male SAE O-ring boss threads both compliant with SAE J514 standards.

With dimensions precisely engineered to a thread size and drill of 9/16-18 and 0.297 mm respectively this adapter offers dependable and leak-free connections in industrial and commercial applications. The 06MJ-06MORB Straight model from the 6400-O series showcases enhanced compatibility and resilience.

Supplier Part Number: 6400-06-06-O

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE ORB
Cubic Inch Space L x W x H Dimensions
0.615 cu-in
Dimension Standards
SAE J1926, SAE J514
Dimensions
1.3 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
11/16 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6400-O Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
9/16-18

Product Questions & Answers (2)

Sign In Hover me Please sign in to submit a question
Question by: Todd R on Apr 1, 2026, 6:55 AM
Will this here fitting hold up alright in a hydraulic system pushing around 5500 psi?
Answer by: Customer Support on Apr 2, 2026, 7:24 PM
Designed to handle dynamic pressures up to 6000 psi, this adapter should work fine in your system at 5500 psi, giving you a bit of headroom.
Question by: Peggy P on Feb 3, 2026, 6:52 AM
trying to tie a JIC 37 degree flare line into an ORB port, is that what this 06MJ-06MORB straight piece is for?
Answer by: Customer Support on Feb 4, 2026, 8:57 PM
Built as a straight adapter, it bridges a male JIC SAE 37 degree flare on one end to a male SAE O-ring boss on the other. Both sides are SAE J514 with 9/16-18 threads, and it uses an NBR O-ring seal on the ORB side to help keep the connection leak-free.
