08MJ-08MORB STRAIGHT W ORIFICE 0.094 IN

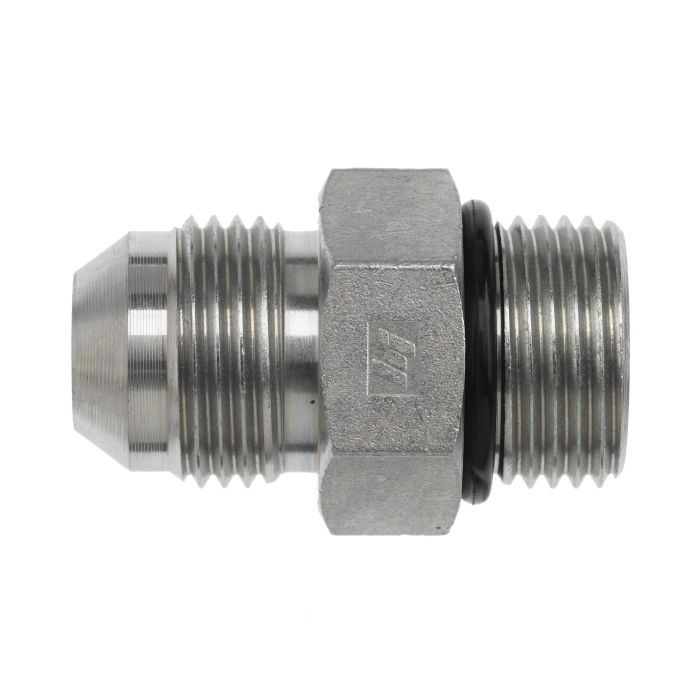

This straight hydraulic fitting connects an 08 Male JIC SAE 37-degree flare on one end to an 08 Male SAE O-Ring Boss on the other, with a 0.094 in. orifice restriction built into both thread paths. The orifice limits flow rate, making this fitting useful in hydraulic circuits where controlled flow or pressure drop between components is required. Manufactured by Brennan Industries, the 08MJ-08MORB Straight W Orifice 0.094 In is constructed from straight steel and carries an NBR O-ring seal for reliable sealing at the ORB end. Both threads conform to SAE J514 and are sized at 3/4-16, with a rated maximum dynamic pressure of 6,000 PSI. California residents should note that this product is subject to a Proposition 65 warning.

SKU: 6400-08-08-O-R.094

Supplier Part Number (MPN): 6400-08-08-O-R.094
