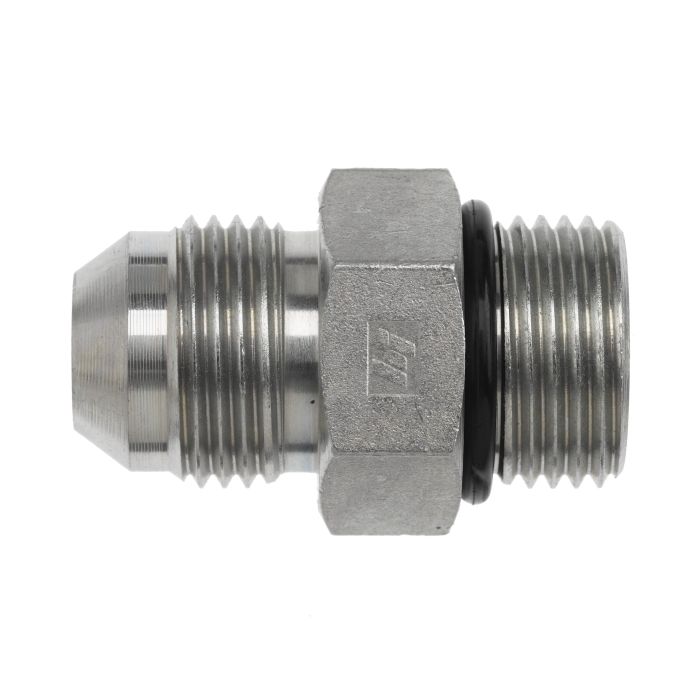

08MJ-20MORB STRAIGHT

Description & Features

This straight steel fitting, part number 6400-08-20-O, features a male JIC SAE 37-degree flare connection on one end and a male SAE O-ring boss on the other. The 08MJ-20MORB STRAIGHT fitting is suitable for applications requiring a secure, leak-resistant connection.

With a maximum dynamic pressure rating of 4,000 PSI, this fitting is manufactured with NBR O-ring seal material. The thread sizes are 3/4-16 for the JIC connection and 1-5/8-12 for the O-ring boss, both manufactured to SAE J514 standards.

SKU: 6400-08-20-O

Supplier Part Number (MPN): 6400-08-20-O

Specifications

Brand Brennan Industries Inc	Brand Brennan Industries	Pack Size 1.00	UOM EA	Supplier Part Number 6400-08-20-O	Product Weight 0.62 lbs

Product Questions & Answers (1)

Question by: Freddie J on Mar 18, 2026, 8:10 PM

trying to swap a fitting out, is this one the straight adapter with a 3/4-16 JIC male on one end and a 1-5/8-12 ORB male on the other?

Answer by: Customer Support on Mar 20, 2026, 6:57 AM

On the ends, it is a straight steel male JIC 37 degree flare in 3/4-16 (SAE J514) on B1, and a male SAE O-ring boss in 1-5/8-12 (SAE J514) on B2. The ORB side uses an NBR O-ring seal.
