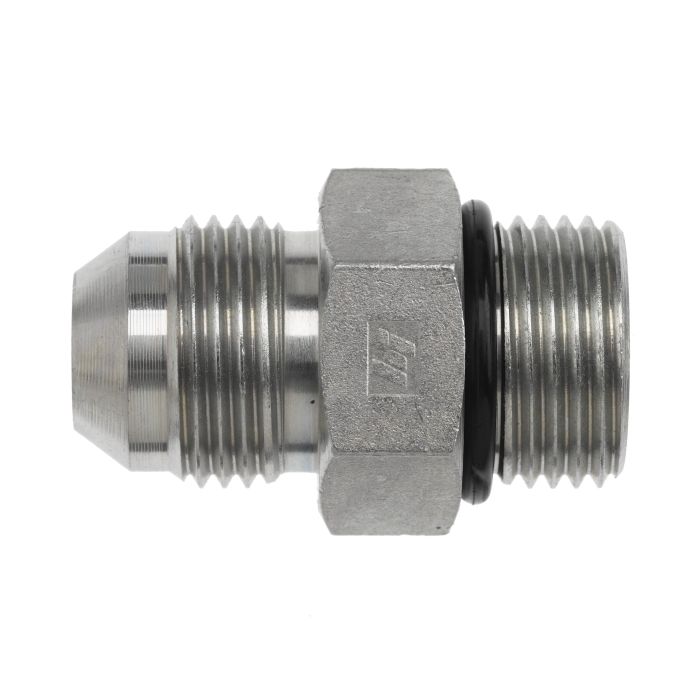

main product photo

16MJ-10MORB STRAIGHT

Ask A Question

Description & Features

This straight steel fitting features a male JIC 37-degree flare on one end and a male SAE O-ring boss on the other. The 16MJ-10MORB STRAIGHT is part of the 6400-O series and is designed for a maximum dynamic pressure of 4,000 PSI. It utilizes an NBR O-ring seal to ensure a reliable connection.

The JIC connection has a 1-5/16-12 thread size, while the O-ring boss connection has a 7/8-14 thread size, both manufactured to SAE J514 specifications. This fitting provides a secure and leak-resistant connection in hydraulic applications.

SKU: 6400-16-10-O

Supplier Part Number (MPN): 6400-16-10-O

Alternate Part Numbers: 6400-16-10, A202702-10-16S

Specifications

Connection Size 1
1 in
Connection Size 2
5/8 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE ORB
Cubic Inch Space L x W x H Dimensions
3.914 cu-in
Dimension Standards
SAE J1926, SAE J514
Dimensions
2.07 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
1-3/8 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
4500 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6400-O Series
Thread 2 Drill Dimensions
0.484 in
Thread B1 Drill Dimensions
0.844 in
Thread Size
7/8-14 x 1-5/16-12

Product Questions & Answers (3)

Sign In Hover me Please sign in to submit a question
Question by: Ricky O on Oct 12, 2025, 8:10 AM
thread sizes on this one got me second-guessing myself, is the JIC end bigger than the ORB end?
Answer by: Customer Support on Oct 13, 2025, 5:44 PM
Yeah, the JIC end is the larger of the two. You're looking at a 1-5/16-12 thread on the male JIC 37-degree flare side and a 7/8-14 thread on the male SAE O-ring boss side. Both ends are built to SAE J514 spec, so if your fittings and ports are sized accordingly, you won't have any surprises when you go to make up the connection.
Question by: Earl W on Aug 17, 2025, 5:35 PM
Will this fitting hold up if I'm pushing it to that 4000 PSI? Don't want no leaks.
Answer by: Customer Support on Aug 19, 2025, 11:44 AM
This straight steel fitting is designed to handle dynamic pressures up to 4,000 PSI, and it uses an NBR O-ring seal to minimize leaks in hydraulic applications.
Question by: Roger S on Sep 25, 2025, 8:30 PM
got a hose with a 1-5/16-12 JIC male end, is this the right straight adapter to go over to an ORB?
Answer by: Customer Support on Sep 27, 2025, 6:15 PM
On the JIC side, it uses a male 37 degree flare with a 1-5/16-12 thread (SAE J514). The other end is a male SAE O-ring boss with a 7/8-14 thread, sealed with an NBR O-ring. If those are the two connection types and thread sizes you are matching, this is the straight fitting for that changeover.
