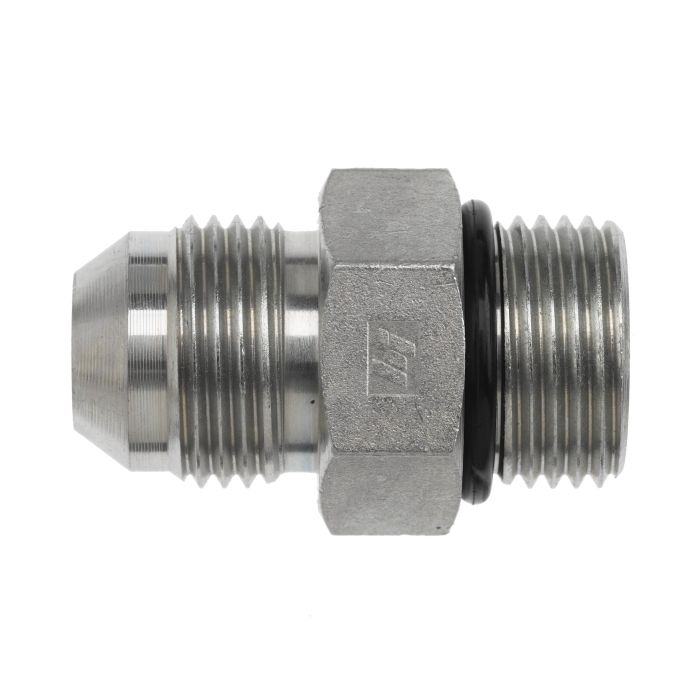

24MJ-24MORB STRAIGHT STNLS

Constructed from stainless steel, the 24MJ-24MORB Straight Stnls is a straight hydraulic adapter fitting designed for high-pressure fluid connections in demanding industrial environments. Both ends feature a 1-7/8-12 thread size, with one end terminating in a Male JIC SAE 37-Degree Flare (SAE J514) and the other in a Male SAE O-Ring Boss configuration, making it well suited for transitioning between these two common connection types within a single inline fitting.

The O-ring seal is NBR material, providing reliable sealing performance across a broad range of hydraulic fluids. Rated to 3,000 PSI maximum dynamic pressure, this fitting is appropriate for medium-to-high-pressure hydraulic circuit applications. The stainless steel construction offers corrosion resistance where carbon steel fittings would be unsuitable, such as in wash-down environments or where fluid compatibility is a concern. Overall length is 2.370 mm, and the fitting is part of Brennan Industries' 6400-O Series.

SKU: 6400-24-24-O-SS

Supplier Part Number (MPN): 6400-24-24-O-SS
