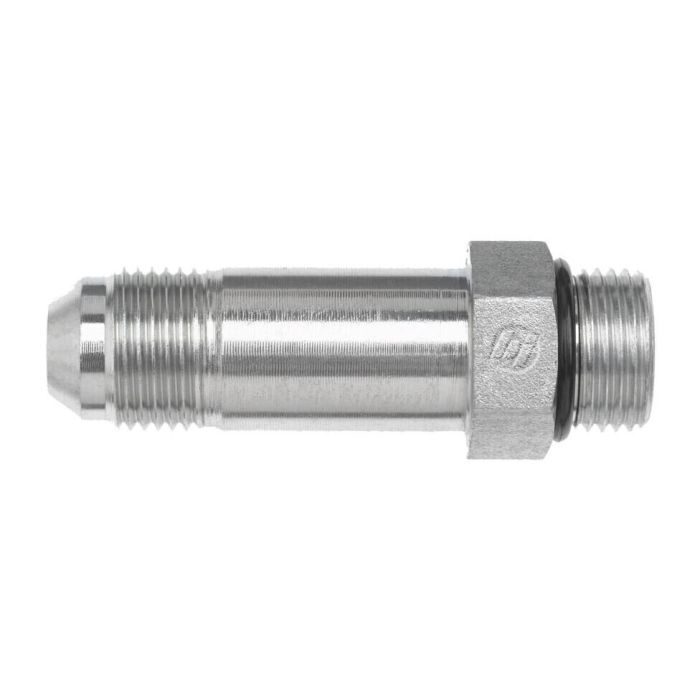

04MJ-04MORB STRAIGHT LONG

Ask A Question

Description & Features

Crafted by Brennan Industries Inc the 04MJ-04MORB Straight Long (2.08 OAL) offers robust performance for industry-specific applications. Designed with an overall length of 2.080 mm this component is constructed from straight steel ensuring durability.

The part features a 7/16-20 thread size on both ends adhering to SAE J514 specifications. The male JIC SAE 37-degree flare and male SAE o-ring boss thread types provide reliable connections and compatibility with various systems.

An NBR o-ring/seal material enhances the longevity of the product offering dependable sealing under different conditions. Please note this product includes a California Prop-65 warning.

Supplier Part Number: 6400-L-04-04-O

Specifications

Connection Size 1
1/4 in
Connection Size 2
1/4 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
2.08 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
0.563 in
Material
Steel
Material Construction
12L14/C1045 Steel
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6400-L-O Series
Thread 2 Drill Dimensions
0.172 in
Thread B1 Drill Dimensions
0.172 in
Thread Size
7/16-20

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Carl Y on Sep 29, 2025, 6:46 PM
both ends on this fitting are the same size, 7/16-20, so it's going male JIC on one side and male ORB on the other, that right?
Answer by: Customer Support on Oct 1, 2025, 10:39 AM
Correct on both counts. One end is a male JIC SAE 37-degree flare and the other is a male SAE o-ring boss, and yes, both are 7/16-20 threads. That combination lets you transition between a flare-style connection and an o-ring boss port without needing an intermediate adapter. Both ends also conform to SAE J514, so you're working within a well-established standard on each side.
