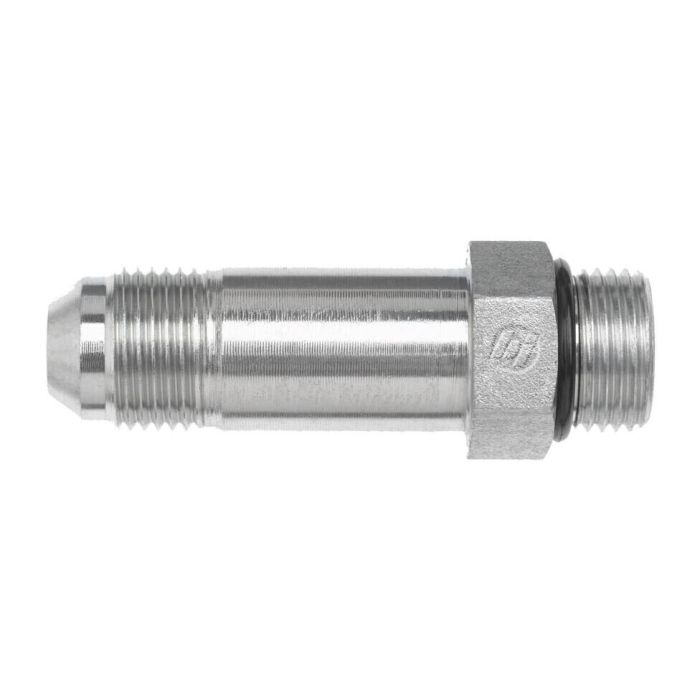

main product photo

06MJ-06MORB STRAIGHT LONG

Ask A Question

Description & Features

Crafted with precision the 06MJ-06MORB Straight Long adapter from Brennan Industries Inc. integrates seamlessly into industrial applications. This adapter features an overall length of 2.310 mm making it suitable for a variety of configurations. Manufactured from high-quality straight steel it ensures durability and longevity under demanding conditions.

The adapter is equipped with NBR O-ring/seal material providing reliable sealing capabilities. It is designed with threads conforming to the SAE J514 specification ensuring compatibility and ease of integration. Both ends of the adapter have a 9/16-18 thread size one being a male JIC SAE 37-degree flare and the other a male SAE O-ring boss offering versatile connectivity.

The 06MJ-06MORB Straight Long adapter is engineered for robustness and reliability making it ideal for various industrial applications. Adhering to strict quality standards it promises consistent performance and optimal functionality.

Supplier Part Number: 6400-L-06-06-O

California Residents: PROP-65 WARNING

Specifications

Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Male JIC, Male SAE ORB
Connection Type 1
Male SAE 37 deg JIC Flare
Connection Type 2
Male SAE ORB
Dimension Standards
SAE J1926, SAE J514
Dimensions
2.31 in L
Finish
Trivalent Zinc-Plated
Fitting Type
Adapter
Hex Size
11/16 in
Material
Steel
Material Construction
12L14/C1045 Steel
Maximum Operating Pressure
6000 psi
Operating Temperature
-40 to 250 deg F
Seal Material
NBR
Series
6400-L-O Series
Thread 2 Drill Dimensions
0.297 in
Thread B1 Drill Dimensions
0.297 in
Thread Size
9/16-18

Product Questions & Answers (1)

Sign In Hover me Please sign in to submit a question
Question by: Hubert T on Apr 2, 2026, 11:54 AM
got a hose end that’s 9/16-18 JIC, and i need to go into an ORB port. is this the right adapter for that?
Answer by: Customer Support on Apr 4, 2026, 6:38 AM
For that hookup, it matches up as a 9/16-18 male JIC 37 degree flare on one end and a 9/16-18 male SAE O-ring boss on the other, both to SAE J514. It also uses an NBR O-ring for the ORB seal.
